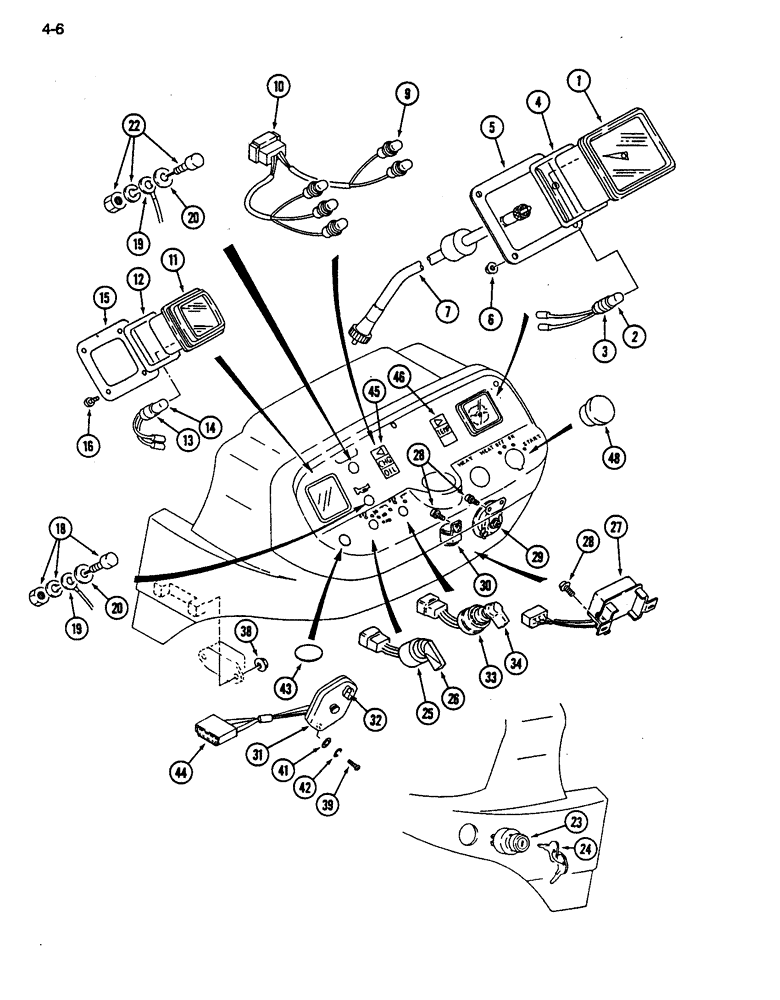

Запчасти Case IH 255 (4-06) - INSTRUMENT CLUSTER, FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

1

1962571C1

TACHOMETER

ASSEMBLY - engine speed, Includes: Ref. 2 - 4

1шт.

2

9415969

BULB,C2V, #158, 14V

- tachometer (No. 158)

1шт.

3

1271705C1

SOCKET

ASSEMBLY - bulb

1шт.

4

1271706C1

GASKET

- tachometer

1шт.

5

1271707C1

PLATE ASSY.

PLATE - tachometer

1шт.

6

3174964R1

LOCK NUT

- flange lock, M6, Grade 10

4шт.

7

1271708C1

CABLE PULLING GRIP

CABLE - tachometer drive

1шт.

9

9415969

BULB,C2V, #158, 14V

- warning lamp (No. 158)

5шт.

10

1275109C1

SOCKET

ASSEMBLY - warning

1шт.

11

1271710C91

GAUGE ASSY.

GAUGE ASSEMBLY - fuel, Includes: Ref. 12 - 14

1шт.

12

1271711C1

GASKET

- fuel gauge

1шт.

13

1271712C1

SOCKET

ASSEMBLY - fuel gauge, Includes: Ref. 14

1шт.

14

1271713C1

LAMP BASE

BULB - fuel gauge

1шт.

15

1271714C1

PLATE ASSY.

PLATE - fuel gauge

1шт.

16

30425R1

SELF-TAP SCREW,Pan Hd, M4.2 x 13

SCREW - pan head cross recess, M4 x 13 mm

4шт.

18

99177C2

SWITCH

ASSEMBLY - check button

1шт.

19

99352C1

HARNESS

WIRE - switch

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

22

99176C2

SWITCH

ASSEMBLY - horn, Includes: Ref. 24

1шт.

23

99178C1

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref. 24

1шт.

24

1961805C1

KEY, IGNITION

KEY - ignition

2шт.

25

1271718C1

SWITCH

ASSEMBLY - lighting, Includes: Ref. 26 and screw

1шт.

26

NSS

NOT SOLD SEPARAT

KNOB - switch

1шт.

NSS

NOT SOLD SEPARAT

SCREW - knob

1шт.

27

1271720C1

REGULATOR

- voltage

1шт.

28

30422R1

SCREW,Cross Pan Hd, M6 x 16

- pan head cross recess, M6 x 16 mm

5шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 11 x 21 x 2 mm

5шт.

29

1271721C1

HORN

- warning

1шт.

30

1271722C1

FLASHER UNIT

FLASHER - turn signal

1шт.

31

1271723C1

BOX

HOLDER - fuse, Includes: Ref. 32

1шт.

32

9426334

FUSE,10 Amp, Type 3AG

- 10 ampere

4шт.

33

1275112C1

SWITCH

- turn signal, Includes: Ref. 34

1шт.

34

NSS

NOT SOLD SEPARAT

KNOB - turn signal switch

1шт.

38

3174964R1

LOCK NUT

- flange lock, M6, Grade 10

2шт.

39

30290R1

SCREW,Cross Pan Hd, M5 x 20

- pan head cross recess, M5 x 20 mm

2шт.

41

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

- flat, 8 x 10 x 1 mm

2шт.

42

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

43

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

44

1962567C1

HARNESS

- wiring (Replaces 1265154C2)

1шт.

45

1275116C1

LENS

- turn indicator, left

1шт.

46

1275115C1

LENS

- turn indicator, right

1шт.

48

1962566C1

CYLINDER END CAP

PLUG - panel

1шт.
