Запчасти Case IH 255 (4-02) - WIRING HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS

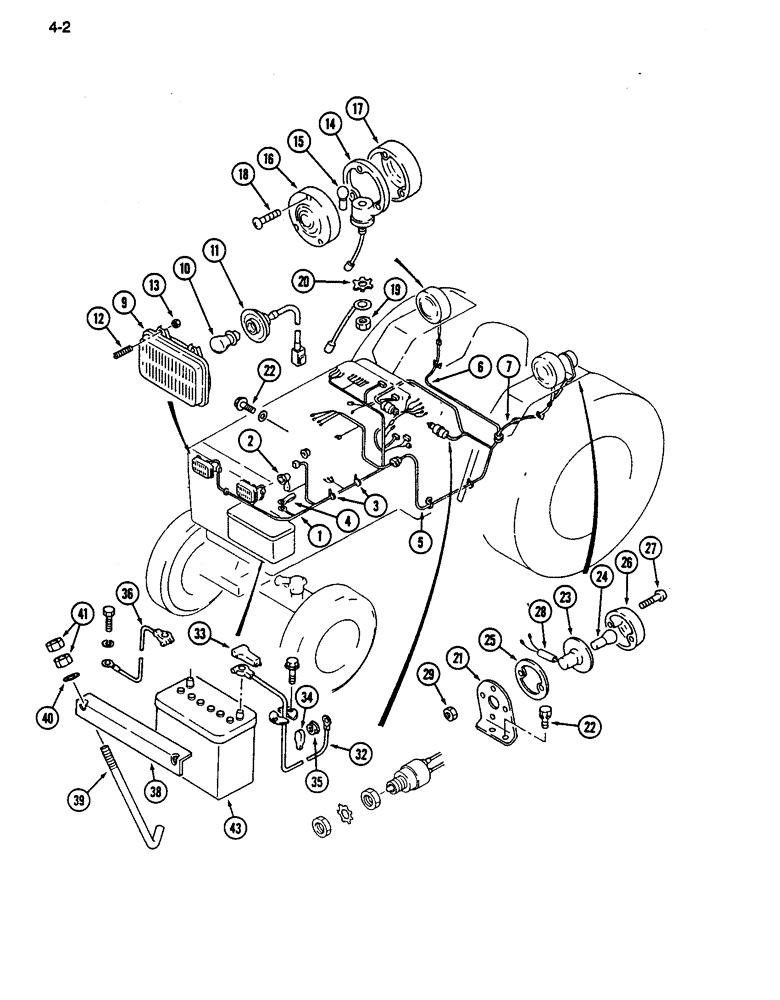

Схема запчастей Case IH 255 - (4-02) - WIRING HARNESS AND BATTERY (04) - ELECTRICAL SYSTEMS
6
29
11
39
22
1
20
32
16
17
24
40
3
28
25
26
38
21
36
41
4
2
33
10
5
15
14
27
43
18
23
22
9
35
7
13
12
19
34

Артикул

Название

Примечание

Количество

1

99179C1

HARNESS

- wiring, front, Includes: Ref. 2

1шт.

2

1271727C1

INSULATOR

NIPPLE - wire terminal

1шт.

3

111619C1

STRAP

- tie

11шт.

4

1962981C1

CLAMP

- wire harness (Replaces 1271755C1)

1шт.

5

1962565C1

HARNESS

- wiring, rear

1шт.

6

1265158C1

HARNESS

- wiring

1шт.

7

1265159C1

HARNESS

- wiring

1шт.

1271730C91

LIGHT

LAMP ASSEMBLY - head, Includes: Ref. 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

UNIT - sealed beam

2шт.

10

1271731C1

BULB

- head lamp

2шт.

11

NSS

NOT SOLD SEPARAT

SOCKET - head lamp

2шт.

12

1271733C1

VALVE SPRING

SPRING - headlight adjusting

6шт.

13

934871R1

NUT,M5, Cl 5

- flange, M5

6шт.

1271734C91

LIGHT ASSY.

LAMP ASSEMBLY - signal, Includes: Ref. 14 - 20 and 50

2шт.

14

NSS

NOT SOLD SEPARAT

GASKET - lamp, rubber

2шт.

15

A41264

BULB,#1156, 12V

Lamp #1156, 12V

2шт.

16

NSS

NOT SOLD SEPARAT

LENS - front

2шт.

17

NSS

NOT SOLD SEPARAT

LENS - rear

2шт.

18

NSS

NOT SOLD SEPARAT

SCREW - M4 x 40 mm

6шт.

19

825-1110

NUT,M10, Cl 8

- hex, M10, Grade 10

2шт.

20

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

2шт.

21

1265152C1

BRACKET

- tail lamp

1шт.

22

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

1271739C91

LIGHT

LAMP ASSEMBLY - tail, Includes: Ref. 23 - 28

2шт.

23

NSS

NOT SOLD SEPARAT

SOCKET - tail lamp

2шт.

24

71421

BULB,R5W, 12V, 5W

- tail lamp (No. 67)

2шт.

25

NSS

NOT SOLD SEPARAT

GASKET - tail lamp, rubber

2шт.

26

NSS

NOT SOLD SEPARAT

LENS - tail lamp

2шт.

27

NSS

NOT SOLD SEPARAT

SCREW - M3 x 30 mm

2шт.

28

NSS

NOT SOLD SEPARAT

TUBE - tail lamp

2шт.

29

934871R1

NUT,M5, Cl 5

- flange, M5

2шт.

32

99182C1

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, positive, Includes: Ref. 33 & 34

1шт.

33

NSS

NOT SOLD SEPARAT

CAP - battery terminal

1шт.

34

NSS

NOT SOLD SEPARAT

CAP - battery cable

1шт.

35

825-1108

NUT,Hex, M8, Cl 8

- flange lock, M8

1шт.

36

99184C1

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, negative

1шт.

38

1271760C1

ANGLE

BRACKET - battery hold down

1шт.

39

1271761C1

BOLT,M6 x 1 x 275mm

ROD - battery hold down

2шт.

40

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

41

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

4шт.

43

B2472

DRY BATTERY

BATTERY - 12 volt

1шт.

Выбрано товаров: 43
