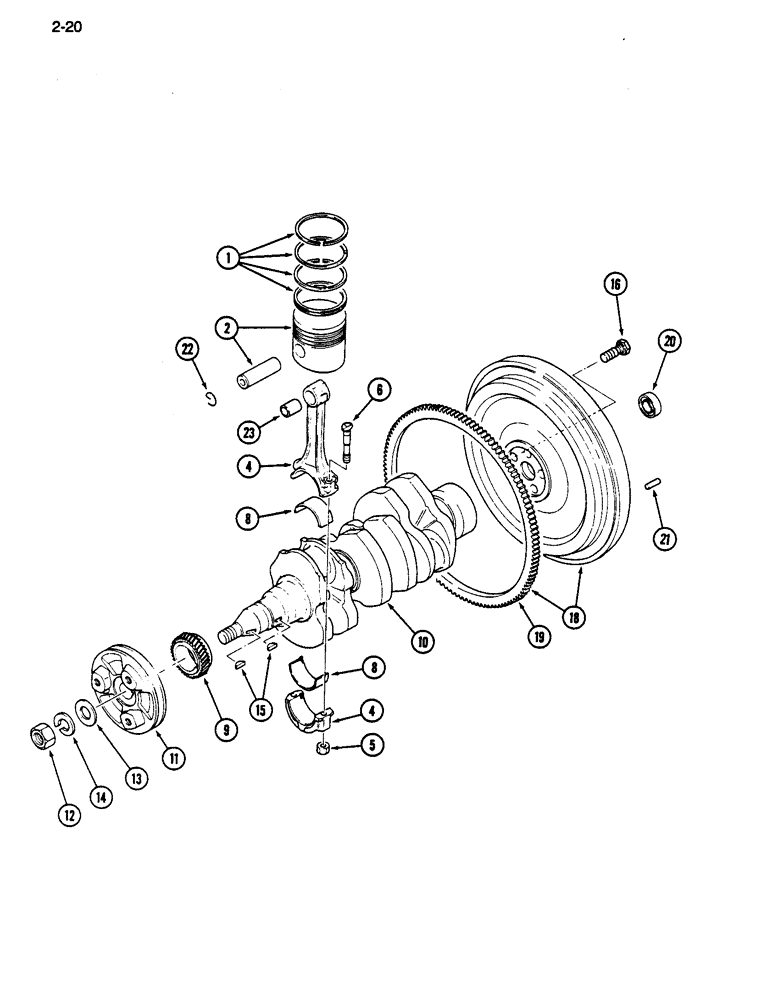

Запчасти Case IH 255 (2-20) - PISTON, CONNECTING ROD, CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

1963646C1

RING

KIT - piston, standard (Replaces 1271935C1), Start Serial: 3892

3шт.

1

1963647C1

RING

KIT - piston, 0.25 mm oversize (Replaces 1271936C1), Start Serial: 3892

3шт.

1

1963648C1

RING

KIT - piston, 0.50 mm oversize (Replaces 1271937C1), Start Serial: 3892

3шт.

1

1963649C1

RING

KIT - piston, 0.75 mm oversize (Replaces 1271938C1), Start Serial: 3892

3шт.

Ref 1 are three ring kits for three groove piston

1шт.

2

1271947C2

PISTON ASSY.

KIT - piston and pin, standard

3шт.

2

1271948C2

PISTON ASSY.

KIT - piston and pin, 0.25 mm oversize

3шт.

2

1271949C2

PISTON ASSY.

KIT - piston and pin, 0.50 mm oversize

3шт.

2

1271950C2

PISTON ASSY.

KIT - piston and pin, 0.75 mm oversize

3шт.

4

1271952C91

ROD

ASSEMBLY - connecting, Includes: Ref. 5 & 6

3шт.

5

1271953C1

NUT

- connecting rod

6шт.

6

1271954C1

BOLT,M8 x 1 x 50.50mm

BOLT - connecting rod

6шт.

8

1271959C1

EXCHANGE CONROD

BEARING KIT - connecting rod, standard

3шт.

8

1271960C1

CRANKSHAFT BEARING

BEARING KIT - connecting rod, 0.25 mm undersize

3шт.

8

1271961C1

CRANKSHAFT BEARING

BEARING KIT - connecting rod, 0.50 mm undersize

3шт.

8

1271962C1

BEARING SET,45.5 mm OD x 22 mm

BEARING KIT - connecting rod, 0.75 mm undersize

3шт.

9

1271963C1

GEAR WHEEL

GEAR - crankshaft, front

1шт.

10

1271965C1

CRANK

SHAFT - engine

1шт.

11

1271966C2

PULLEY

- crankshaft

1шт.

12

1273140C1

NUT

- crankshaft

1шт.

13

895-12018

WASHER,M18 x 34 x 3

- flat, 20 x 34 x 3 mm

1шт.

14

892-11018

LOCK WASHER,M18

WASHER - lock, 18 mm

1шт.

15

1271974C1

KEY

- Woodruff, 5 x 19 mm

2шт.

16

1271833C2

FLANGE BOLT,Hex Wshr Hd, M12 x 1.25 x 29mm

BOLT - flywheel

5шт.

18

1271968C91

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 19

1шт.

19

1271969C1

GEAR WHEEL

GEAR - ring

1шт.

20

1273355C91

BEARING, BALL,15 mm ID x 32 mm OD x 9 mm

BEARING ASSEMBLY - ball

1шт.

21

1271835C1

AXLE PIN

PIN - dowel, 8 mm OD

1шт.

22

1273079C1

RING

- retaining, piston pin

6шт.

23

NSS

NOT SOLD SEPARAT

BEARING - connecting rod (Order 1271952C91)

3шт.

23

1962927C1

BEARING LINER,23 mm ID x 26 mm OD x 22 mm

3шт.
