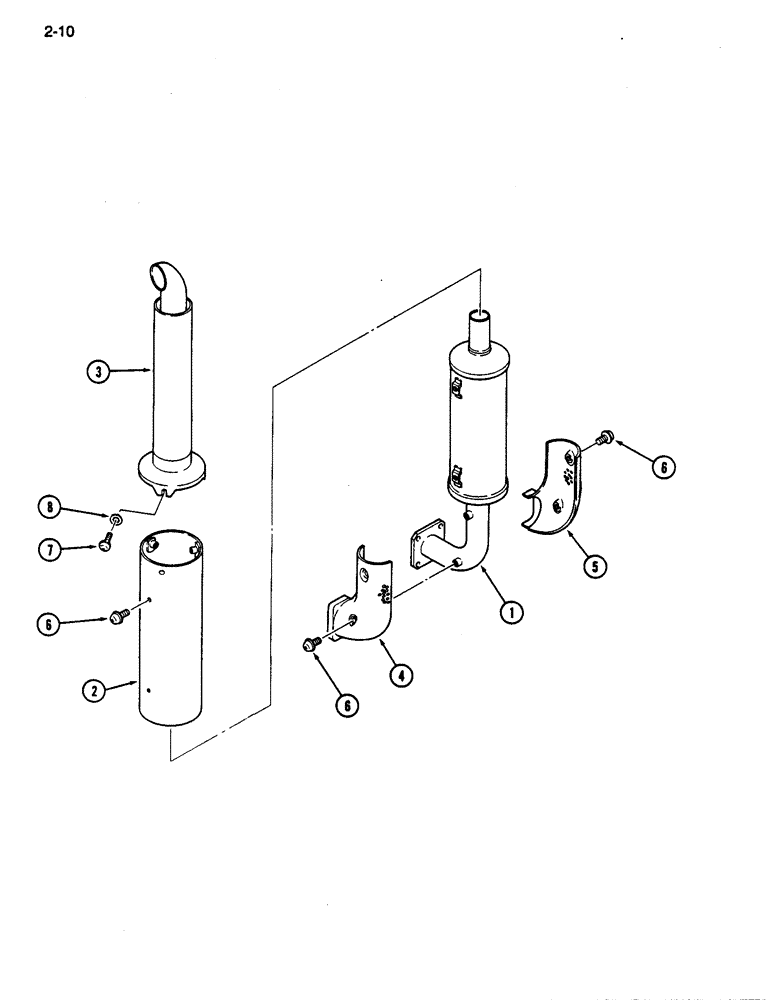

Запчасти Case IH 255 (2-10) - EXHAUST SYSTEM, VERTICAL (02) - ENGINE

1

1269756C2

MUFFLER

ASSEMBLY - exhaust

1шт.

2

1269757C1

HOUSING

BODY - muffler cover

1шт.

3

1273016C2

PIPE

- exhaust, vertical

1шт.

4

1269759C2

COVER ASSY

COVER - exhaust pipe, front

1шт.

5

1269798C2

COVER ASSY

COVER - exhaust pipe, rear

1шт.

6

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

8шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

8шт.

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

8шт.

7

30497R1

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recess, M6 x 12 mm, Grade 4.8

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

8

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 7 x 12 x 2 mm

3шт.
