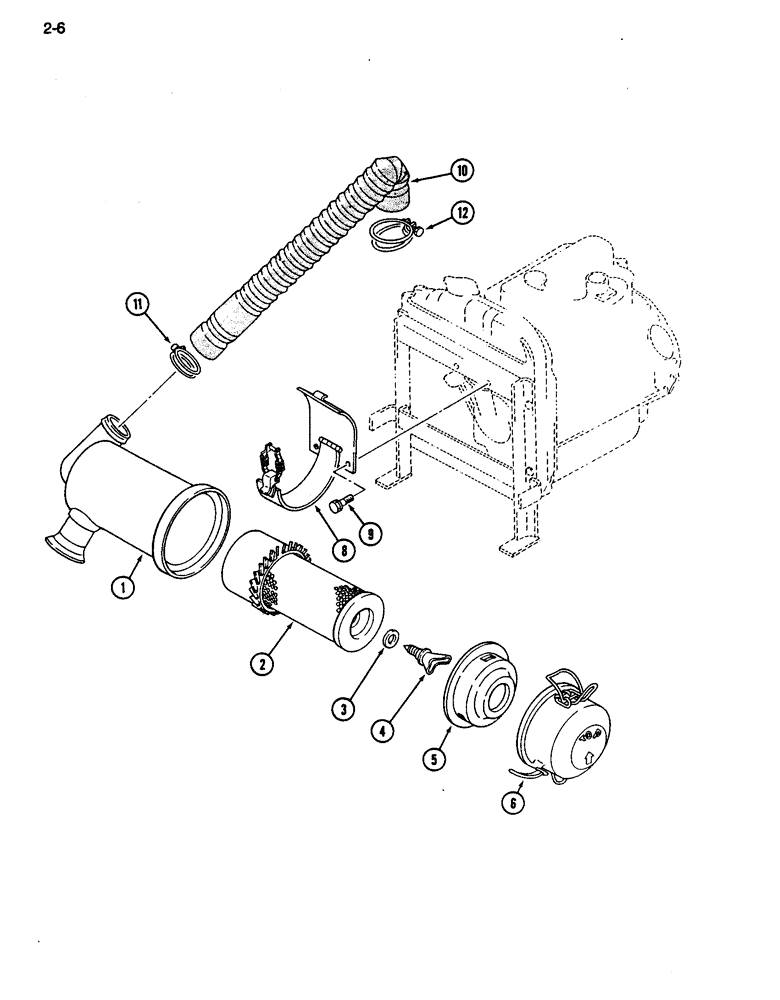

Запчасти Case IH 255 (2-06) - AIR CLEANER SYSTEM (02) - ENGINE

1269662C91

CLEANER ASSY.

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order 1269662C91)

1шт.

2

1273134C91

FILTER, ELEMENT

KIT - element, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - seal (Order 1273134C91)

1шт.

4

1269665C1

BOLT

BOLT - element attaching

1шт.

5

1269666C1

COVER ASSY

COVER - air cleaner

1шт.

6

1269667C1

COVER ASSY

COVER - air cleaner

1шт.

8

1269669C1

SUPPORT ASSY.

SUPPORT - air cleaner

1шт.

9

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

10

99222C1

INTAKE AIR HOSE,40.00 mm ID, 50.00 mm ID x 700.00

- Air Cleaner 40.00 mm ID, 50.00 mm ID x 700.00

1шт.

11

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - hose

1шт.

12

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - hose

1шт.
