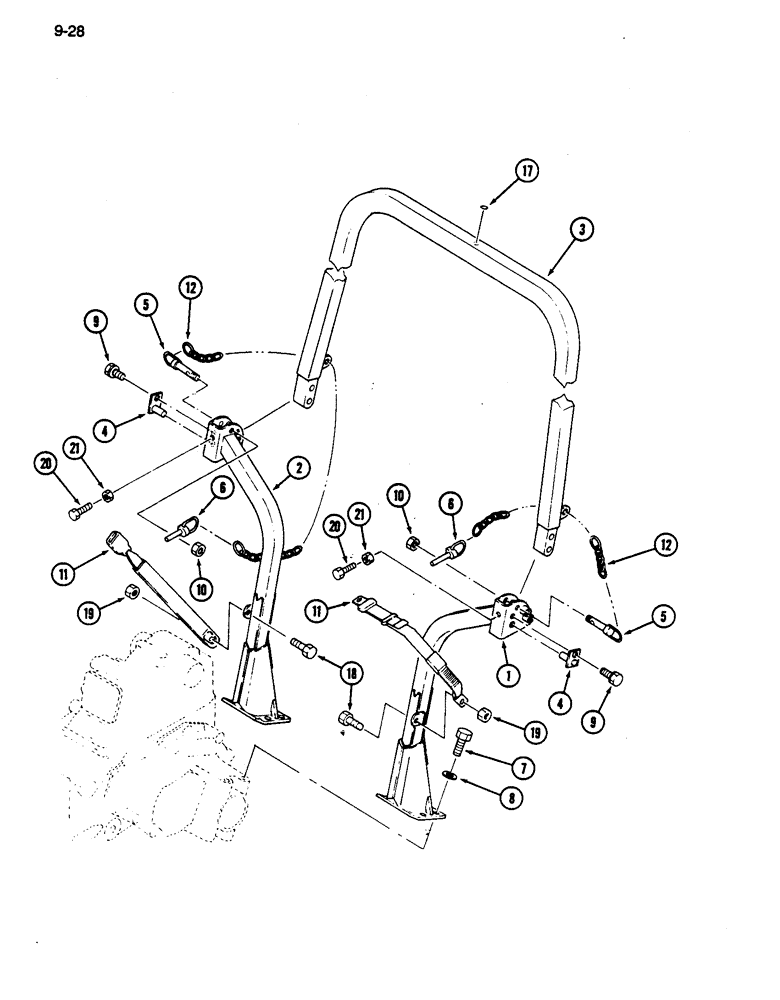

Запчасти Case IH 255 (9-28) - ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1963138C1

FRAME

ASSEMBLY - ROPS, foldable (Machinery item), Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

PILLAR - frame, left (Order 1963138C1)

1шт.

2

NSS

NOT SOLD SEPARAT

PILLAR - frame, right (Order 1963138C1)

1шт.

3

NSS

NOT SOLD SEPARAT

BAR - roll (Order 1963138C1)

1шт.

4

99341C1

PIVOT PIN

PIN - hinge

2шт.

5

99342C1

PIN

- threaded

2шт.

6

99343C1

PIN

- klik

2шт.

7

827-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9, Full Thd

- hex, M14 x 2.00 x 35 mm, Grade 10.9

8шт.

8

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

8шт.

9

1962705C1

BOLT

- M10 x 16 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

10

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

2шт.

11

1962703C1

SAFETY BELT

SAFETY BELT

1шт.

12

99346C1

CHAIN (AG)

CHAIN - link

4шт.

17

1962664C1

BOLT (SPREADER),M8 x 19mm

PLUG - frame

1шт.

18

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

2шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

195-529

WASHER,7/16", SAE

- flat, 15/32 x 59/64 x 5/64 inch

1шт.

19

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

20

1269797C1

TUBE NUT

NUT - hex jam, M16

2шт.

21

1963125C1

BOLT (SPREADER),M16 - 1.5 x 49mm

BOLT - special, ROPS locking (Replaces 1962704C1)

2шт.
