Запчасти Case IH 255 (9-24) - STEPS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

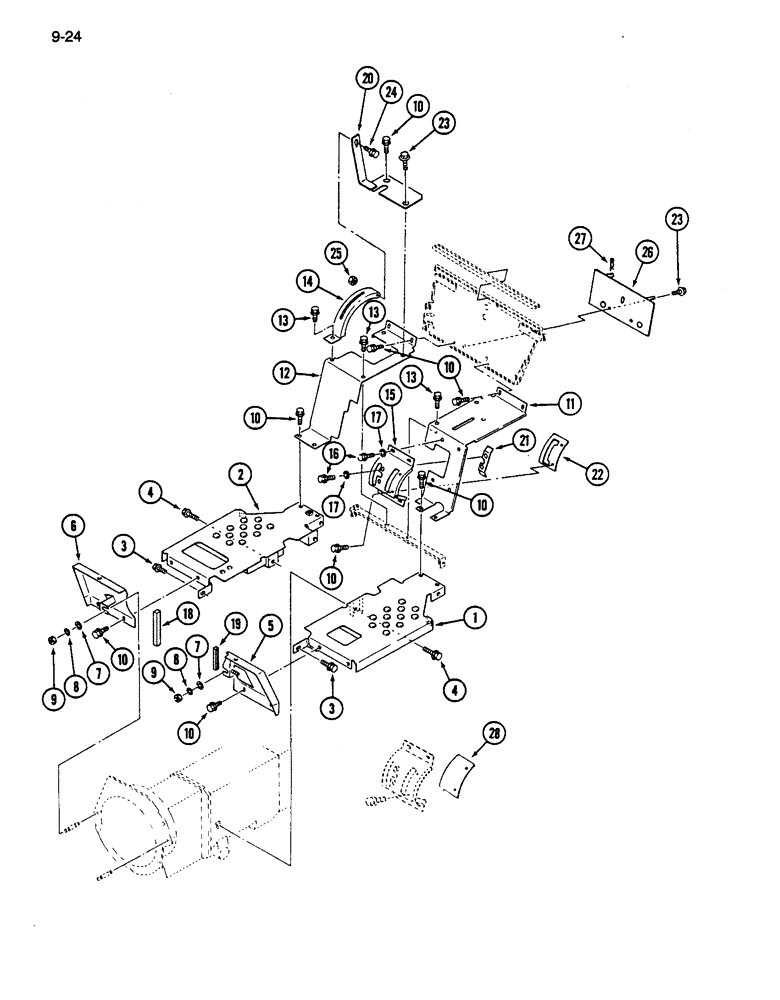

Схема запчастей Case IH 255 - (9-24) - STEPS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS
4
10
10
24
28
6
3
21
10
10
7
7
23
16
10
8
10
20
10
11
15
13
17
9
17
22
18
14
3
2
12
25
23
26
19
13
4
9
13
27
8
1
5

Артикул

Название

Примечание

Количество

1

1282598C1

STEP

- mounting, left

1шт.

2

1273584C1

PLATE ASSY.

STEP - mounting, right

1шт.

3

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

4

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

5

99387C1

DRAWBAR SUPPORT

SUPPORT - step, left

1шт.

6

1273586C1

SUPPORT ASSY.

SUPPORT - step, right

1шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

9

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

2шт.

10

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

16шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

16шт.

11

1273587C3

COVER ASSY

SUPPORT - console, left

1шт.

12

1282599C2

COVER ASSY

SUPPORT - console, right

1шт.

13

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

14

1273510C3

GUIDE

- control lever

1шт.

15

99385C1

COVER

- control, left

1шт.

16

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

6шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

17

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6 x 12 x 2 mm

6шт.

18

1273588C1

SEAL

SEAL - edge, rubber

1шт.

19

1273621C1

BAND

SEAL - edge, rubber

1шт.

20

99097C2

BRACKET

- guide

1шт.

21

1282580C1

GUIDE

- neutral

1шт.

22

99386C1

PLATE

- guide (With mid PTO)

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

24

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

25

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

1шт.

26

99388C2

BRACKET

- (With mid PTO)

1шт.

27

1269737C1

AXLE PIN

PIN - hair (With mid PTO)

2шт.

28

1962586C1

COVER ASSY

PLATE - cover (Without mid PTO)

1шт.

Выбрано товаров: 41
