Запчасти Case IH 255 (9-14) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

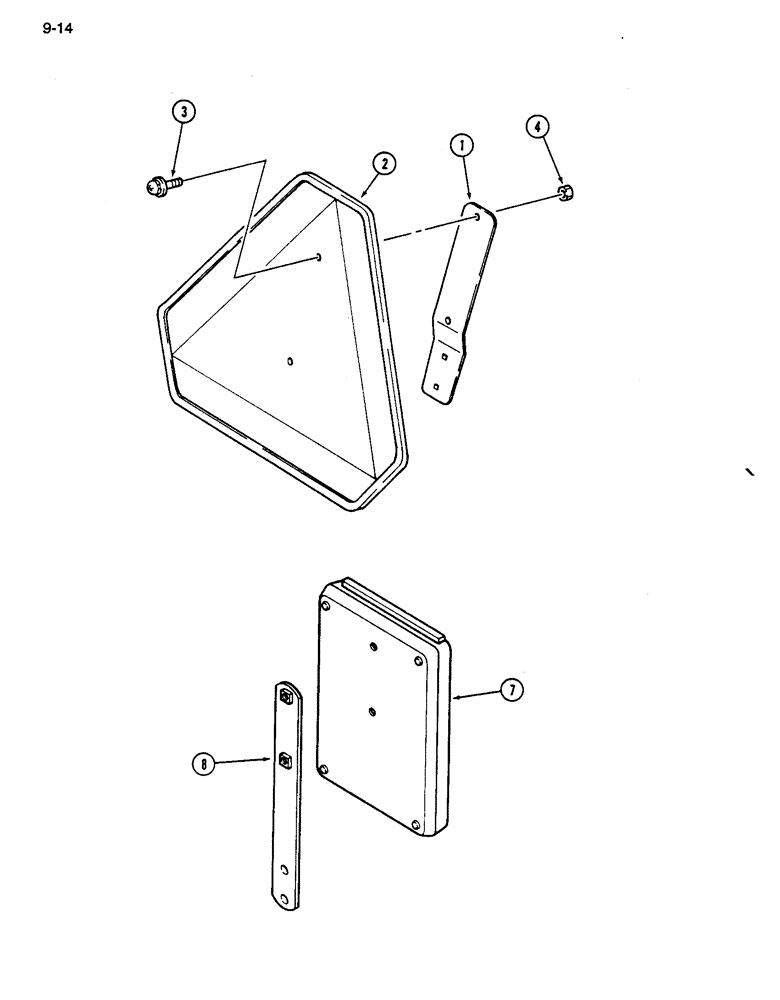

Схема запчастей Case IH 255 - (9-14) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS
2
3
8
4
1
7

Артикул

Название

Примечание

Количество

1

1981382C1

PLATE ASSY.

BRACKET - SMV emblem mounting (Replaces 99303C1)

1шт.

2

99304C1

WARNING SIGN

DECAL - SMV emblem (Replaces 1265035C1)

1шт.

3

30192R1

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, M6 x 16 mm

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

4

825-1106

NUT,Hex, M6, Cl 8

- hex flange, M6, Grade 10

2шт.

7

T104294

BOX

- operators manual

1шт.

8

1981383C1

PLATE ASSY.

BRACKET - manual box mounting

1шт.

Выбрано товаров: 8
