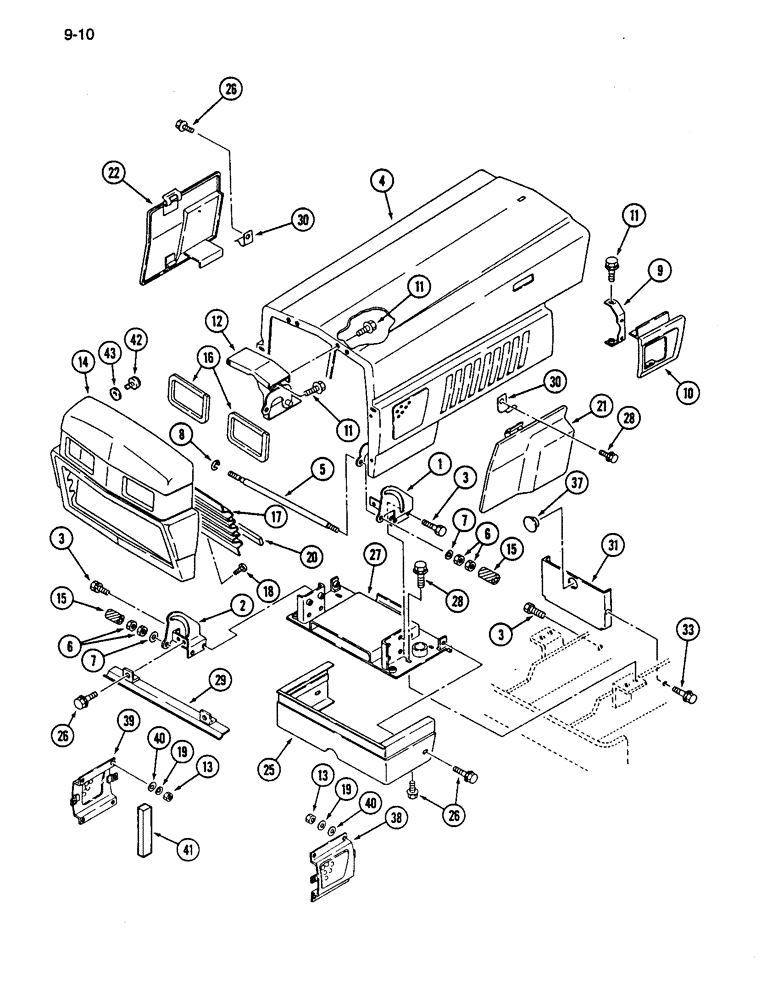

Запчасти Case IH 255 (9-10) - HOOD, PANELS, GRILLE AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

99150C1

BRACKET

- hinge, left

1шт.

2

99151C1

BRACKET

- hinge, right

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

4

99255C1

HOOD

- tractor

1шт.

5

99259C1

BAR

ROD - hood pivot

1шт.

6

1269793C1

NUT

- hex, M10

4шт.

7

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

8

1271817C1

CIRCLIP,M9

RING - retaining

2шт.

9

1269709C1

SUPPORT ASSY.

SUPPORT - rear side cover

1шт.

10

1269710C1

COVER ASSY

COVER - rear side

1шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

10шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

10шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

12

99162C1

BRACKET

- hood

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

12шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

13

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

12шт.

14

99166C1

GRILLE

HOUSING - grille

1шт.

15

99260C1

CUSHION ASSY.

CUSHION - hood pivot

2шт.

16

99164C1

CUSHION ASSY.

CUSHION - head lamp

2шт.

17

99163C1

SCREEN

- grille

1шт.

18

1273616C1

SELF-TAP SCREW,Phil, M5 x 16mm

SCREW - tapping

7шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

12шт.

20

99165C1

CUSHION ASSY.

CUSHION - screen

1шт.

21

99261C1

COVER ASSY

COVER - left

1шт.

22

99262C1

COVER

- right

1шт.

25

99264C1

SCREEN

COVER - front

1шт.

26

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

8шт.

27

99265C1

BRACKET

- battery

1шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

29

99171C1

COVER ASSY

COVER - lower front

1шт.

30

1962581C1

VALVE SPRING

SPRING - cover

2шт.

31

99266C1

COVER ASSY

COVER - lower rear

1шт.

33

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

37

1962524C1

GROMMET

- rubber

1шт.

38

1962578C1

COVER ASSY

COVER - left

1шт.

39

1962579C1

COVER ASSY

COVER - right

1шт.

40

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

41

1962720C1

CUSHION ASSY.

CUSHION - cover

2шт.

42

1962722C1

SELF-TAP SCREW

BOLT - grill housing retaining

2шт.

43

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.
