(9-08) - FRONT END WEIGHTS

Запчасти Case IH 255 (9-08) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

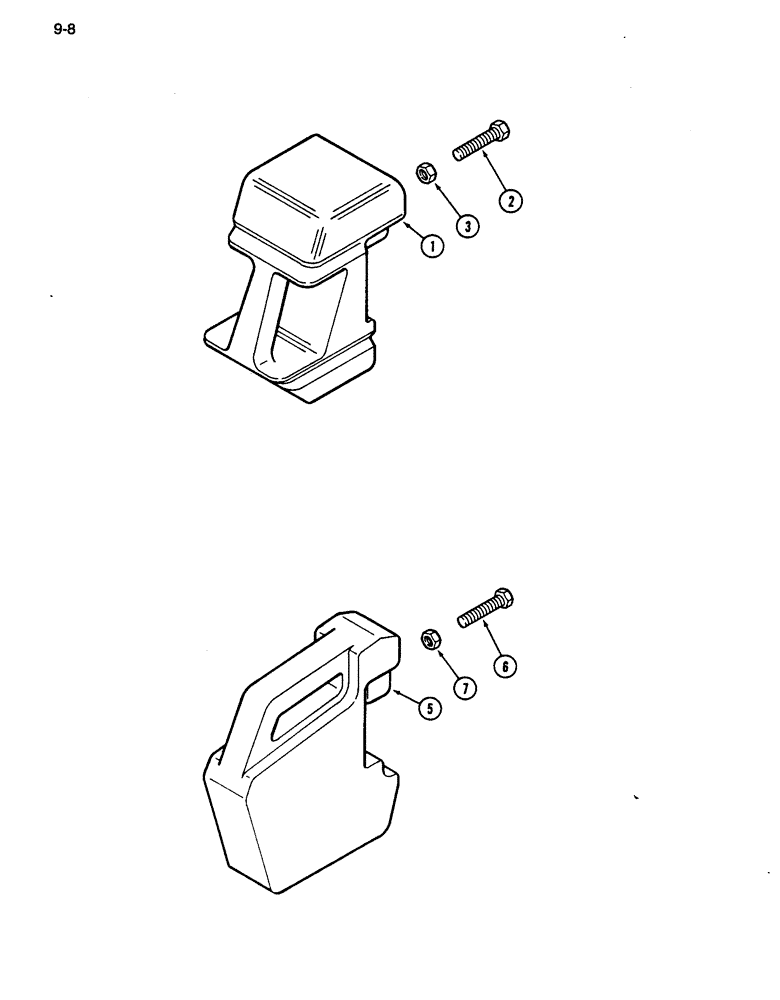

Схема запчастей Case IH 255 - (9-08) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS
1
6
5
3
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

WEIGHT ATTACHMENT - front (Machinery item), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

WEIGHT - front

1шт.

2

514-843

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

3

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

1шт.

1961808C91

WEIGHT ATTACHMENT - front (Machinery item), Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

WEIGHT - front

1шт.

6

514-843

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

7

525-5115

NUT,M12 x 1.25, Cl 8

- hex, M12 x 1.25

1шт.
