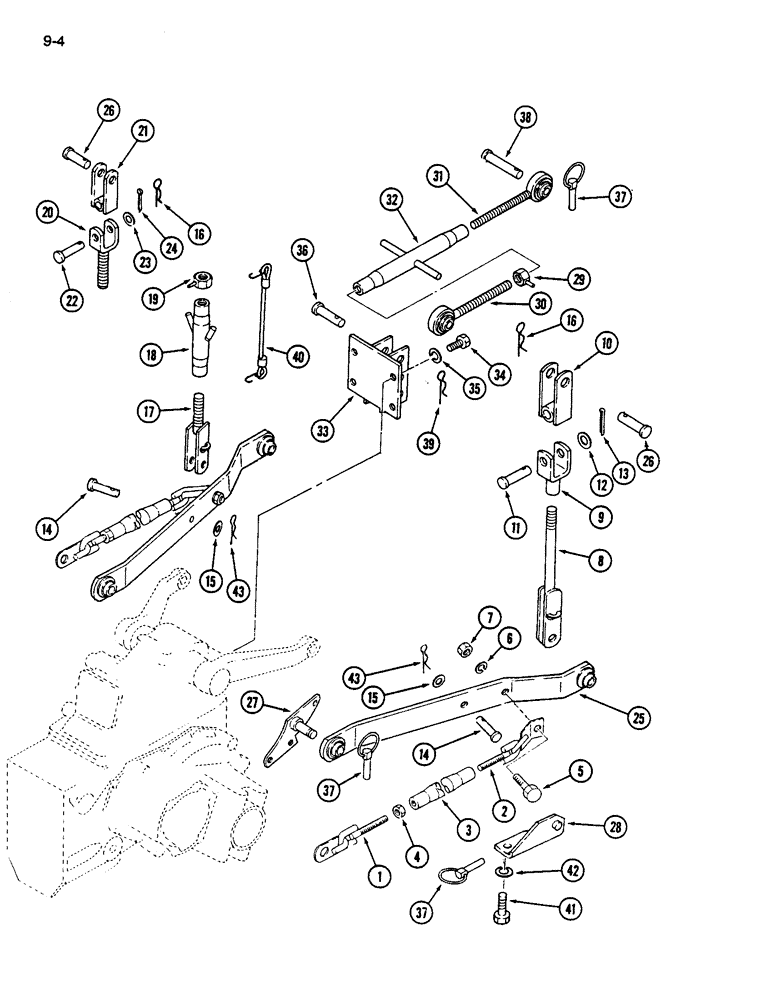

Запчасти Case IH 245 (9-04) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

1

1273158C1

CHAIN (AG)

CHAIN - anti-sway

2шт.

2

1273159C1

CHAIN (AG)

CHAIN - anti-sway

2шт.

3

1962406C1

TURNBUCKLE

- anti-sway adjust (Replaces 1273312C1)

2шт.

4

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14 x 1.50 mm

2шт.

5

514-1013

BOLT,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

7

525-5109

NUT,M16 x 1.5, Cl 8

- hex, M16 x 1.50

2шт.

8

1273314C1

ROD

- lift, lower, left

1шт.

9

1273317C1

YOKE

- lift link, upper, left

1шт.

10

1273300C1

YOKE

- swivel, lift link, left

1шт.

11

1273311C1

AXLE PIN

PIN - clevis

1шт.

12

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

13

632-657

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

1шт.

14

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

2шт.

15

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

16

153528C1

COTTER PIN

- hair

2шт.

17

1273301C1

ROD

- lift, lower, right

1шт.

18

1273310C1

TURNBUCKLE

- lift adjust, right

1шт.

19

1273315C1

NUT

- lock, special

1шт.

20

1273302C1

ROD

- upper lift link, right

1шт.

21

1273300C1

YOKE

- swivel, lift link, right

1шт.

22

1273311C1

AXLE PIN

PIN - clevis

1шт.

23

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

24

632-657

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

1шт.

25

1273303C1

DRAG LINK

LINK - lower

2шт.

26

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

2шт.

27

1273304C1

BRACKET

SUPPORT - lower link, left (Shown)

1шт.

27

1273305C1

BRACKET

SUPPORT - lower link, right

1шт.

28

1273318C2

BRACKET

- anti-sway chain, left (Shown)

1шт.

28

1273319C2

BRACKET

- anti-sway chain, right

1шт.

1962633C1

DRAG LINK

LINK ASSEMBLY - upper, Includes: Ref. 29 - 32

1шт.

29

1273316C1

LOCK NUT

- lock, upper link

1шт.

30

1273306C1

ADJUSTER

ROD - upper link, left

1шт.

31

1273307C1

ADJUSTER

ROD - upper link, right

1шт.

32

1273308C1

TURNBUCKLE

- upper link

1шт.

33

1273309C1

BRACKET

- upper link mounting

1шт.

34

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

4шт.

35

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

36

1273155C1

AXLE PIN

PIN - clevis, upper link

1шт.

37

372907R91

LINCH PIN

PIN - klik

7шт.

38

1273157C2

PIN

- clevis, upper link

1шт.

39

1273156C1

AXLE PIN

PIN - hair

1шт.

40

1273313C1

STRAP

- retaining, upper link

1шт.

41

30405R1

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

- hex, M14 x 35 mm

4шт.

42

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

43

632-657

COTTER PIN,M4 x 40

PIN - cotter, 4 x 40 mm

2шт.
