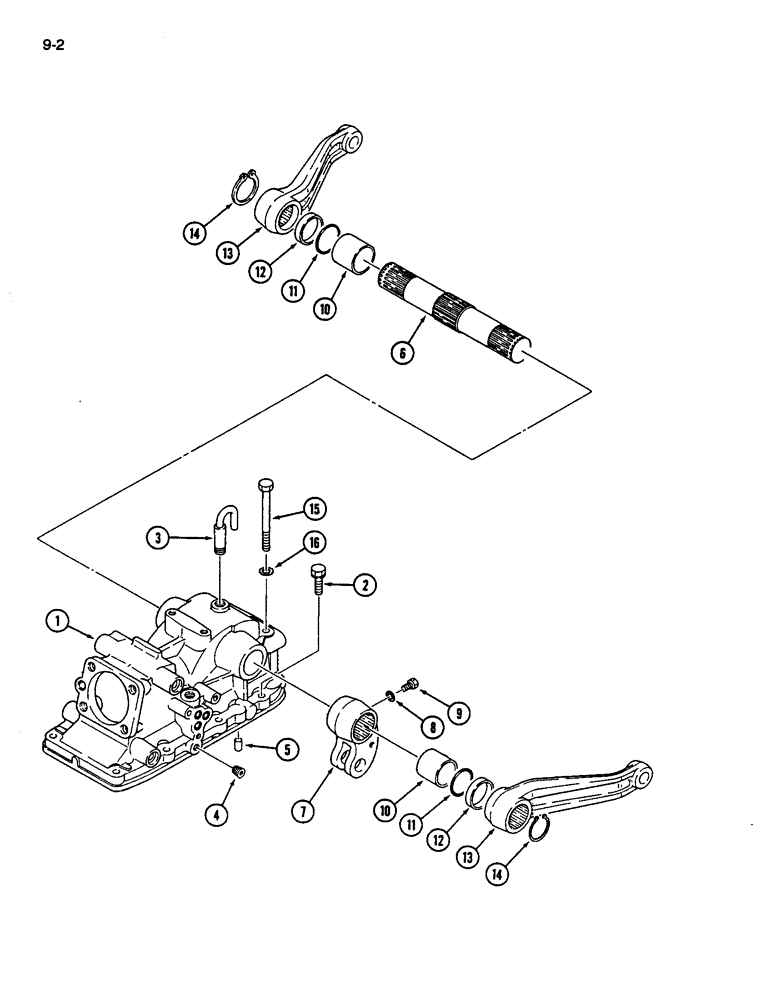

Запчасти Case IH 245 (9-02) - HITCH SYSTEM, HOUSING, ROCKSHAFT AND LIFT ARMS (09) - CHASSIS/ATTACHMENTS

1

1269860C1

CASE

HOUSING - rockshaft

1шт.

2

514-713

BOLT,Hex, M10 x 1.25 x 45mm, Cl 5.6

- hex, M10 x 45 mm

8шт.

892-11010

LOCK WASHER,M10

8шт.

3

1269861C1

VENTILATION PIPE,10.5 mm Diameter, 50, 37 mm Length

TUBE - vent pipe

1шт.

4

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, automotive, 1/4-18 pipe

4шт.

5

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened, 10 x 20 mm

2шт.

6

1269862C1

SHAFT HOUSING

ROCKSHAFT - hitch

1шт.

7

1269863C1

ARM

- power

1шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

9

1963628C1

BOLT (SPREADER),M8 - 1.25 x 25mm

BOLT - hex special, M8 x 25 mm (Replaces 1269864C1)

1шт.

10

1269865C1

BUSHING

- rockshaft

2шт.

11

1269894C1

O-RING

O-RING - rockshaft

2шт.

12

1269866C1

SPACER

- lift arm

2шт.

13

1269867C1

ARM

- lift

2шт.

14

933075R1

SNAP RING,M40, Ext

RING - retaining, external, 36 mm ID

2шт.

15

514-727

BOLT,Hex, M10 x 1.25 x 130mm, Cl 8.8

- hex, M10 x 130 mm

2шт.

16

892-11010

LOCK WASHER,M10

2шт.
