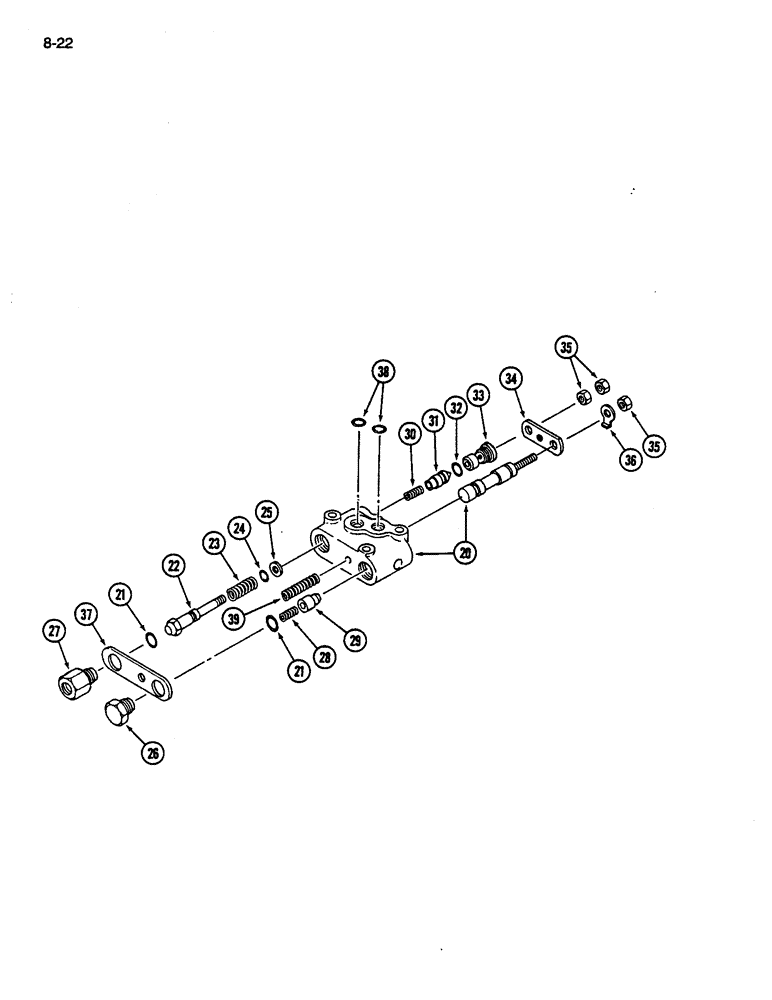

Запчасти Case IH 245 (8-22) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

1273440C91

LOCK VALVE

VALVE ASSEMBLY - control, hydraulic, Includes: Ref. 20 - 39

1шт.

20

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - control valve (Order 1273440C91)

1шт.

21

1282754C1

O-RING

O-RING - 15 mm ID

2.шт.

22

1282755C1

LOCK VALVE

VALVE - poppet

1шт.

23

1282756C1

VALVE SPRING

SPRING - valve poppet

1шт.

24

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

25

1282608C1

RING

- backup

1шт.

26

1282757C1

PLUG

- unloader valve

1шт.

27

1282758C1

PLUG

- seat

1шт.

28

1282759C1

VALVE SPRING

SPRING - valve

1шт.

29

1282760C1

LOCK VALVE

VALVE - unloader

1шт.

30

1282761C1

VALVE SPRING

SPRING - check valve

1шт.

31

1282762C1

LOCK VALVE

VALVE - check

1шт.

32

1282763C1

O-RING

O-RING - 9 mm ID

1шт.

33

1282764C1

STOP

SEAT - check valve

1шт.

34

1282765C1

PLATE ASSY.

PLATE - valve

1шт.

35

1282766C1

NUT

- hex, jam

3шт.

36

1282767C1

LOCK WASHER

- lock, tab

1шт.

37

1282768C1

PLATE ASSY.

PLATE - end, valve

1шт.

38

1273523C1

O-RING

O-RING - 12 mm ID

2шт.

39

1282769C1

VALVE SPRING

SPRING - return

1шт.
