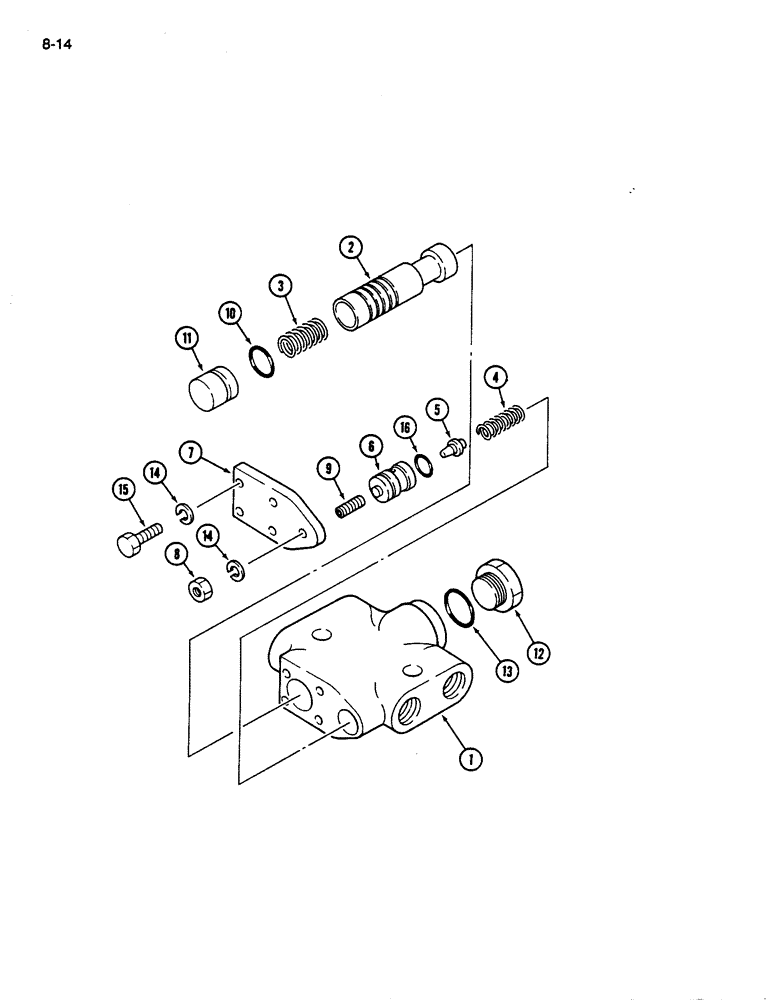

Запчасти Case IH 245 (8-14) - FLOW DIVIDER VALVE (08) - HYDRAULICS

1275156C91

LOCK VALVE

VALVE ASSEMBLY - flow divider, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1275156C91)

1шт.

2

NSS

NOT SOLD SEPARAT

PLUNGER - valve (Order 1275156C91)

1шт.

3

1282772C1

VALVE SPRING

SPRING - plunger

1шт.

4

1282773C1

VALVE SPRING

SPRING - poppet valve

1шт.

5

1288251C1

LOCK VALVE

VALVE - poppet

1шт.

6

1282775C1

HOUSING

- poppet valve

1шт.

7

1282776C1

PLATE ASSY.

PLATE - end

1шт.

8

1282766C1

NUT

- hex, jam, M8

1шт.

9

1282777C1

SET SCREW,Hex Skt, M8 x 1.25 x 20mm

SCREW - set

1шт.

10

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

11

1282778C1

PLUG

- valve plunger

1шт.

12

1288252C1

PLUG

- hex, valve body

1шт.

13

1282780C1

O-RING

O-RING - 24 mm ID

1шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

4шт.

16

1282749C1

O-RING

O-RING - 12 mm ID

1шт.
