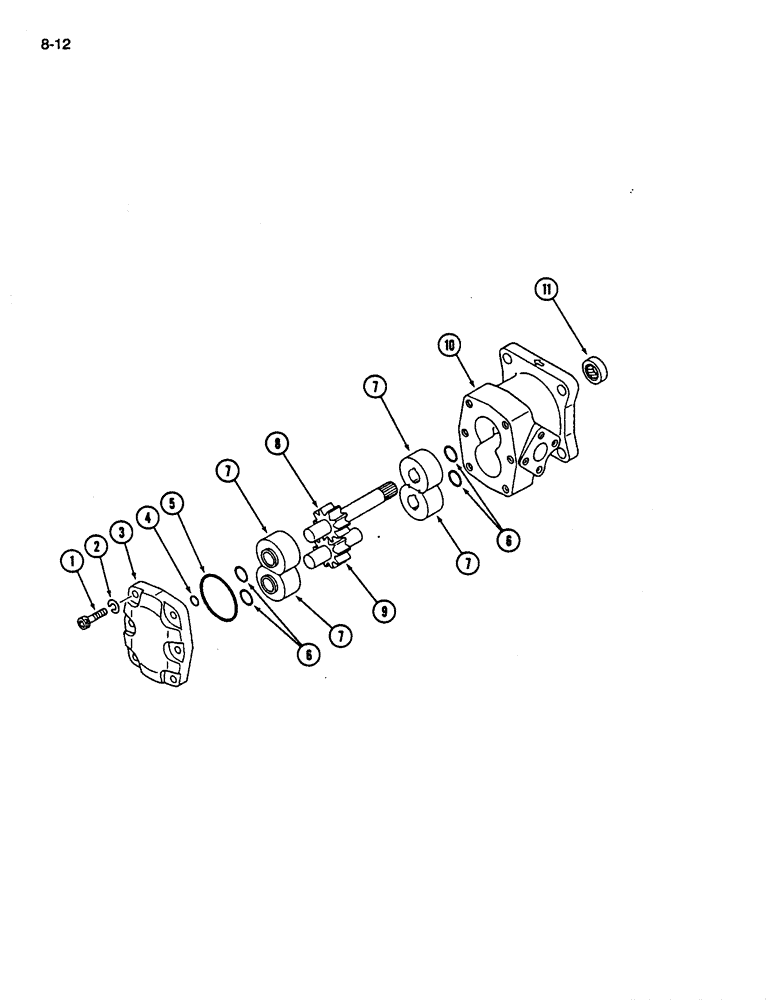

Запчасти Case IH 245 (8-12) - HYDRAULIC PUMP, CONSTANT MESH MECHANICAL TRANSMISSION WITH POWER STEERING, SYNCHROMESH TRANSMISSION (08) - HYDRAULICS

1282801C1

PUMP

ASSEMBLY - hydraulic, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - socket head

6шт.

2

NSS

NOT SOLD SEPARAT

WASHER - pump cover

6шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - pump

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1273407C1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - pump

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1273407C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - pump

4шт.

Part of Hydraulic Pump Seal Kit, P/N 1273407C1

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - pump shaft

4шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - pump, drive

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - pump, idler

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

Part of Hydraulic Pump Seal Kit, P/N 1273407C1

1шт.

1273407C1

SEAL KIT

SEAL KIT - hydraulic pump: Includes: ref. nos. 4, 5, 6, 11

1шт.
