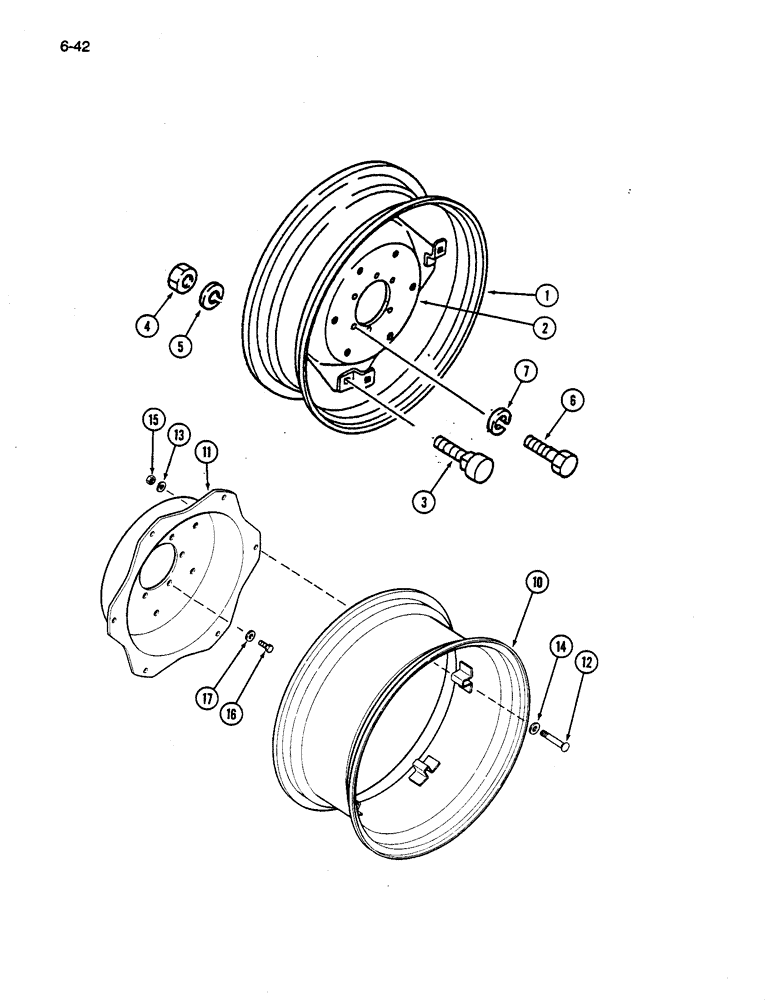

Запчасти Case IH 245 (6-42) - REAR WHEELS, 2 PIECE RIM AND DISC (06) - POWER TRAIN

1

1962455C1

RIM

- wheel, W10 x 24, for 11.2-24 R1 and 11.2/10-24 R3 tire

2шт.

2

1962456C1

DISC

- wheel, 24 inch

2шт.

3

1962457C1

BOLT (SPREADER),M16 x 1.5 x 37mm

BOLT - wheel, M16

8шт.

4

525-5109

NUT,M16 x 1.5, Cl 8

- hex, wheel weight, M16 x 1.50 mm

8шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

8шт.

6

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

7

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

10

1963753C1

RIM

- wheel, W10 x 24 (For 11.20-24 tire)

2шт.

11

1963754C1

WHEEL (STEERING)

DISC - wheel, W10 x 24

2шт.

12

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

13

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

14

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

15

352777R2

WHEEL NUT

- rear wheel, 5/8 inch NC, Grade 8

12шт.

16

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

12шт.

17

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.
