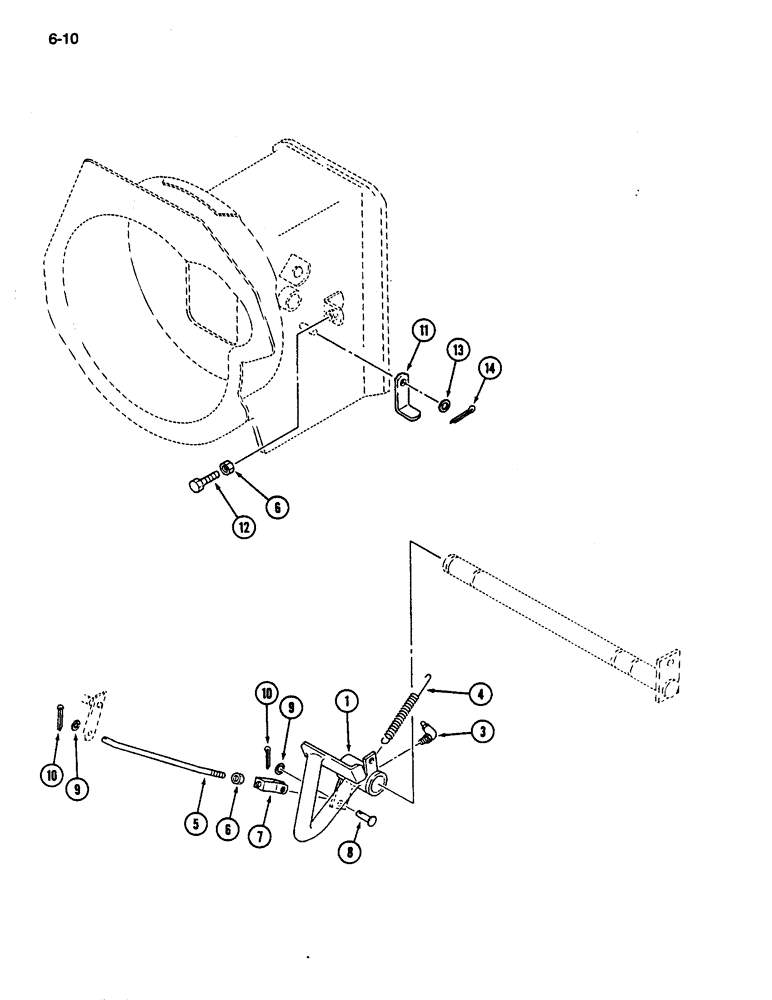

Запчасти Case IH 245 (6-10) - INCHING PEDAL, CONSTANT MESH TRANSMISSION (06) - POWER TRAIN

1

1275129C1

PEDAL

- inching

1шт.

3

109400

STEERING KNUCKLE

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

4

1269808C1

VALVE SPRING

SPRING - inching pedal

1шт.

5

1275278C1

ROD

- linkage

1шт.

6

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

2шт.

7

1275424C1

YOKE

- linkage

1шт.

8

30569R1

CLEVIS PIN,M8 x 25

PIN - clevis, 8 x 25 mm

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

10

932952R1

COTTER PIN,M2 x 20

PIN - cotter, 2 x 20 mm (replaces 632-580)

2шт.

11

1275132C1

SUPPORT ASSY.

BRACKET - support

1шт.

12

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

14

934788R1

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm (replaces 632-578)

1шт.
