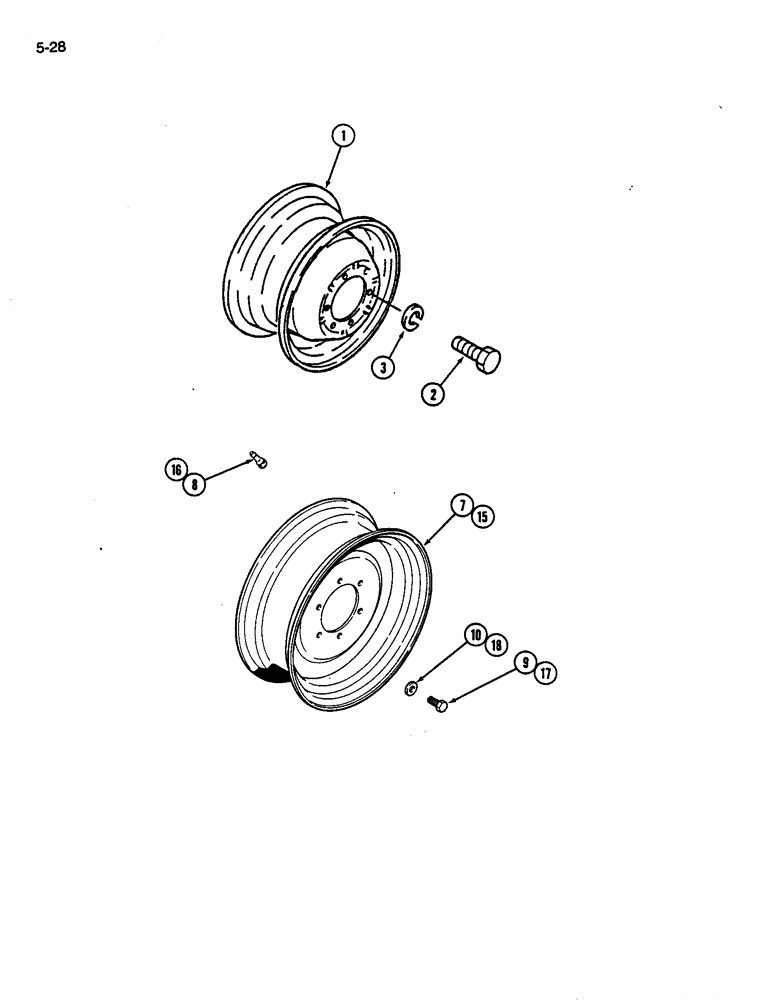

Запчасти Case IH 245 (5-28) - FRONT WHEELS, MFD TRACTOR (05) - STEERING

1

1271849C1

RIM

WHEEL - front, 5 JA x 14 WDC (For 6.00-14 R1 or 7.00-14 R1 or 7.00-14 R3 turf tire)

2шт.

1

1962461C1

WHEEL (STEERING)

WHEEL - front, 7 JA x 14 (For 24 x 8.50-14 PD turf tire)

2шт.

1

1273432C1

WHEEL (STEERING)

WHEEL - front, 7 JA x 15 (For 27-8.50 x 15 R3 turf tire)

2шт.

2

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm (14 inch rim)

12шт.

2

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm (15 inch rim)

12шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

12шт.

446229

WASHER,1/2" x 1 1/4" x .109"

- flat, 9/16 x 1-1/4 x 3/32 inch

12шт.

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

7

1963721C1

WHEEL (STEERING)

WHEEL - front, 14 x 6KB (For 25 x 8.50-14 tire)

2шт.

8

387841R91

VALVE

- wheel

2шт.

9

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm

12шт.

10

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.

15

1981385C1

WHEEL (STEERING)

WHEEL - front, 15 x 5KB (For 5.90-15 I3 tire)

2шт.

16

387897R91

VALVE STEM

VALVE - wheel

2шт.

17

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm

12шт.

18

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

12шт.
