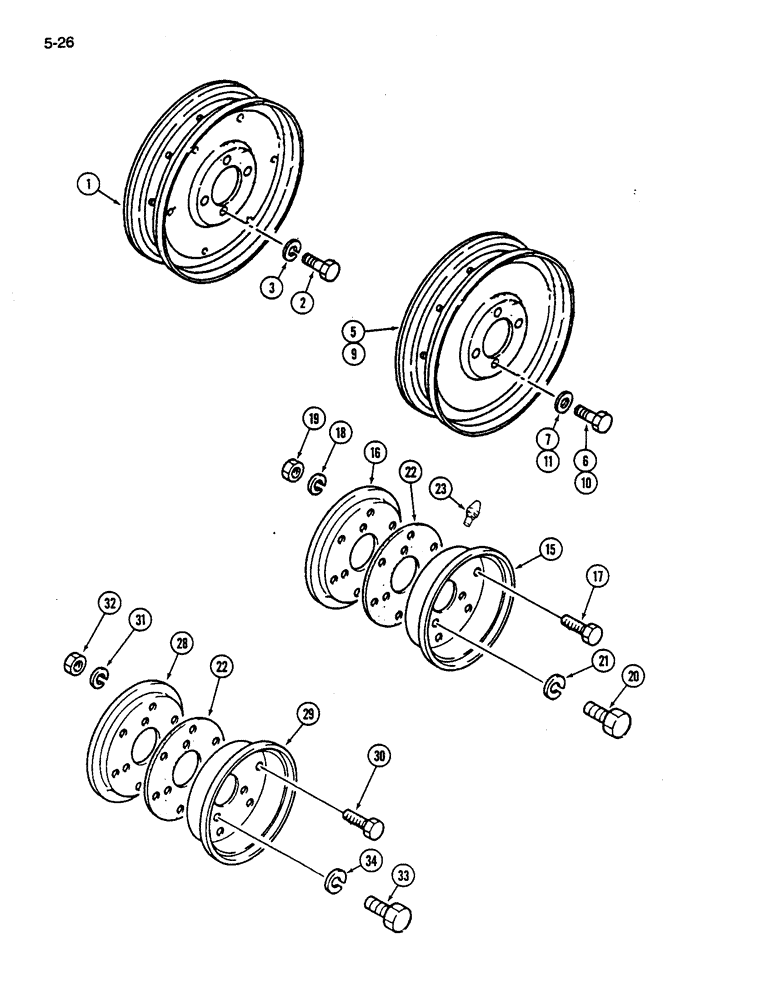

Запчасти Case IH 245 (5-26) - FRONT WHEELS, ONE PIECE, 2 WHEEL DRIVE TRACTOR (05) - STEERING

1

1271846C1

WHEEL ASSY.

WHEEL - front, 3.00 D x 15 (For 4.00-15 F2 and 5.00-15 F2 tire)

2шт.

1

1273431C1

WHEEL (STEERING)

WHEEL - front, 4.00 E x 15 DC (For 5.90 x 15 11 tire)

2шт.

1

99378C1

WHEEL (STEERING)

WHEEL - front, 7JA x 14 (For 24 x 8.50-14 turf tire)

2шт.

2

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm

8шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

8шт.

5

1963730C1

WHEEL (STEERING)

WHEEL - front, 15 x 3.00 (For 4.00-15 tire)

2шт.

6

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm

8шт.

7

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

8шт.

9

1963730C1

WHEEL (STEERING)

WHEEL - front, 15 x 3.00 (For 5.00-15 tire)

2шт.

10

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm

8шт.

10

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex special, M14 x 30 mm

8шт.

11

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm

8шт.

15

1271842C1

RIM

WHEEL - halt, outer, 6.00 I x 10 DT (For 20 x 8.00-10 R3 turf tire) (replaces 1271542C1), split type 2WD tractor

2шт.

16

1271843C1

WHEEL (STEERING)

WHEEL - halt, inner, 6.00 I x 10 DT (For 20 x 8.00-10 R3 turf tire) (replaces 127184L3C1) split type 2WD tractor

2шт.

17

1269762C1

BOLT,Hex, M10 x 1.25 x 20mm

BOLT - wheel split type 2WD tractor

12шт.

18

892-11010

LOCK WASHER,M10

Split type 2WD tractor M10

12шт.

19

1269796C1

TUBE NUT

NUT - wheel split type 2WD tractor

12шт.

20

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm split type 2WD tractor

8шт.

21

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm, Split type 2WD tractor

8шт.

22

1282646C1

GASKET

- wheel (replaces 1282546C1) split type 2WD tractor

2шт.

23

387897R91

VALVE STEM

VALVE - wheel (replaces 27746R1) split type 2WD tractor

2шт.

28

1963774C1

RIM

WHEEL - front half, inner (For 20 x 8.00-10 tire) split type 2WD tractor

2шт.

29

1963775C1

RIM

WHEEL - front half, outer (For 20 x 8.00-10 tire) split type 2WD tractor

2шт.

30

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

Split type 2WD tractor Hex, M10 x 1.25 x 20, 8.8, Full Thd

12шт.

31

892-11010

LOCK WASHER,M10

(Replaces 933965R1) Split type 2WD tractor M10

12шт.

32

825-11410

NUT,M10 x 1.25, Cl 8

(Replaces 824-1410) Split type 2WD tractor M10 x 1.25, Cl 8

12шт.

33

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex special, M14 x 25 mm split type 2WD tractor

8шт.

34

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- hardened, 15 x 28 x 3 mm split type 2WD tractor

8шт.
