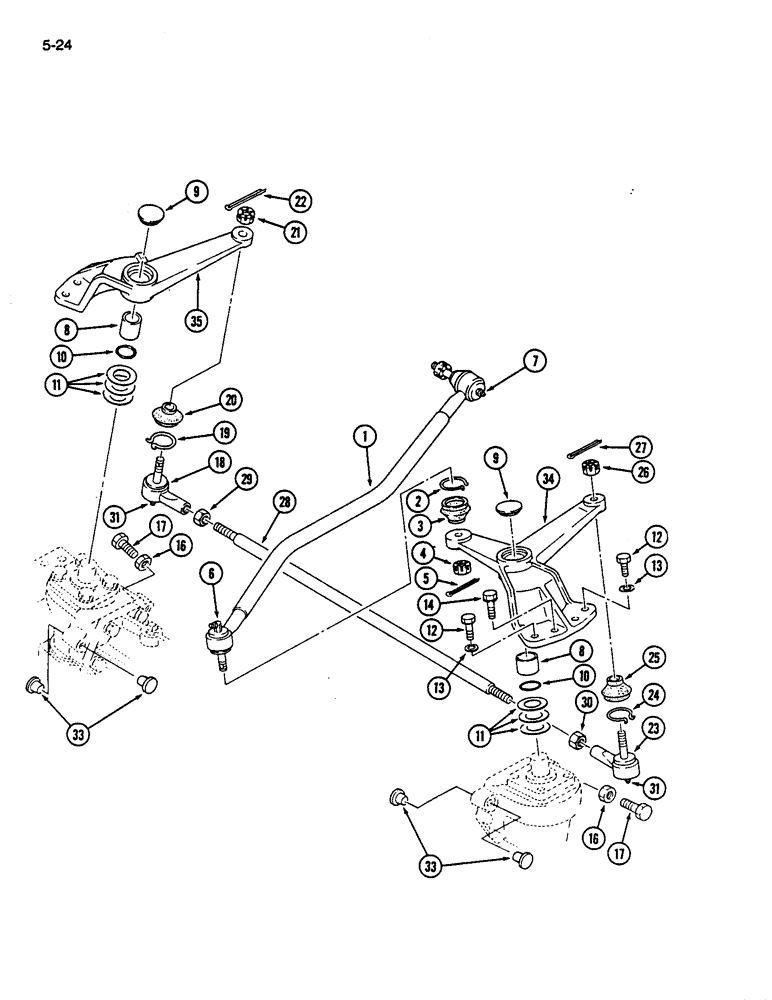

Запчасти Case IH 245 (5-24) - TIE ROD AND STEERING LINKAGE, MFD TRACTOR (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
99391C1
DRAG LINK
ROD ASSEMBLY - drag link, Includes: Ref. 2 - 7
1шт.
2
1273528C1
RING
- retaining
2шт.
3
1273527C1
COVER ASSY
COVER - dust
2шт.
4
1271875C1
NUT
- castle, M10
2шт.
5
632-630
PIN - cotter, 3 x 25 mm
2шт.
6
219-49
LUBE NIPPLE,90 Degree Elbow, 1/4" - 18 NPTF
FITTING - grease, extra short, 65 degree 1/4-18 PT
1шт.
7
1273649C1
FITTING
- grease, M6
1шт.
8
1273226C1
BUSHING
- steering arm
2шт.
9
172570
PLUG,Exp, 1 3/8"
- steering arm
2шт.
10
1269874C1
O-RING
O-RING -24 mm ID
2шт.
11
1273560C1
SHIM
KIT - steering arm
1шт.
12
1273558C1
BOLT,Hex, M12 x 1.25 x 35mm
BOLT - shoulder
4шт.
13
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
14
514-842
BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd
4шт.
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
16
525-5100
NUT,M10 x 1.25, Cl 8
- hex, M10
2шт.
17
514-718
BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd
- hex, M10 x 1.25 x 40 mm
2шт.
17
514-720
BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8, Full Thd
(Left wheel only, 27 x 8.50 - 15 tire) Hex, M10 x 1.25 x 50, 8.8, Full Thd
1шт.
18
1273539C91
END ASSY.
ROD END ASSEMBLY - tie, right (Includes Ref. 31), Includes: Ref. 19 - 22
1шт.
19
1273528C1
RING
- retaining
1шт.
20
1273527C1
COVER ASSY
COVER - dust
1шт.
21
1271875C1
NUT
- castle, M10
1шт.
22
632-604
PIN - cotter, 3 x 20 mm
1шт.
23
1273540C91
END ASSY.
ROD END ASSEMBLY - tie, left (Includes Ref. 31), Includes: Ref. 24 - 27
1шт.
24
1275164C1
RING
- retaining (Replaces 1273528C1)
1шт.
25
1273527C1
COVER ASSY
COVER - dust
1шт.
26
1271875C1
NUT
- castle, M10
1шт.
27
632-604
PIN - cotter, 3 x 20 mm
1шт.
28
1273559C1
TURNBUCKLE
TIE ROD - turnbuckle
1шт.
29
525-5115
NUT,M12 x 1.25, Cl 8
- hex, M12
1шт.
30
1269785C1
NUT
- hex, M12, left hand thread
1шт.
31
1273649C1
FITTING
- grease, M6
2шт.
33
NSS
NOT SOLD SEPARAT
PLUG
4шт.
34
99229C1
ARM
- knuckle
1шт.
35
1273555C2
ARM
- tie rod
1шт.
Выбрано товаров: 35
