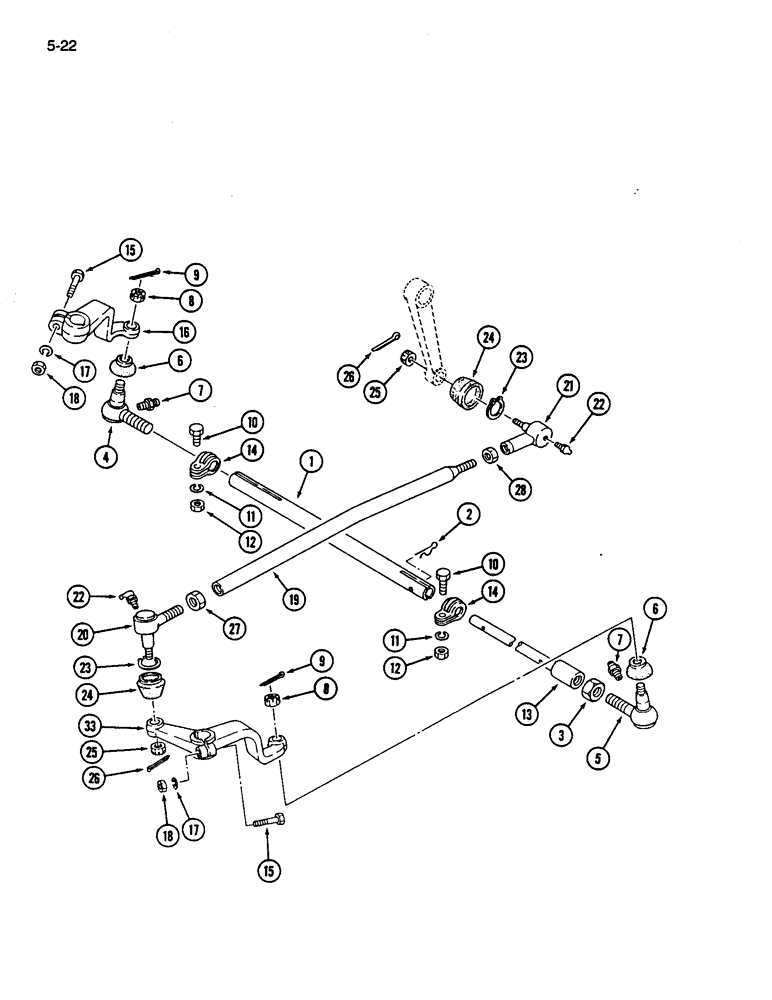

Запчасти Case IH 245 (5-22) - TIE ROD AND STEERING LINKAGE, ADJUSTABLE AXLE (05) - STEERING

1

1273646C1

SHAFT HOUSING

ROD - tie, outer

1шт.

2

1273647C1

AXLE PIN

PIN - hair

1шт.

3

1273545C1

NUT

- hex, M17 x 1.5 mm, left hand thread

1шт.

4

1273546C91

END ASSY.

ROD END ASSEMBLY - tie, right (Includes Ref. 6 - 9)

1шт.

5

1273547C91

END ASSY.

ROD END ASSEMBLY - tie, left, Includes: Ref. 6 - 9

1шт.

6

1273548C1

COVER ASSY

COVER - dust

2шт.

7

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

2шт.

8

1273549C1

NUT

- castle, M12

2шт.

9

732-3225

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (replaces 632-630)

2шт.

10

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

2шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

2шт.

13

1273653C1

ROD

- tie, inner

1шт.

14

1273654C1

CLAMP

- tie rod

2шт.

15

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex, M10 x 60 mm, Grade 10.9

2шт.

16

1273551C1

ARM

- steering, right (Replaces 1275143C1)

1шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

30168R1

NUT,M10, Cl 10

- hex, M10, Grade 10

2шт.

19

99390C1

LINK

- drag

1шт.

Ref. 19, 99390C1 drag link has female threads on both ends and Ref. 21, 1962619C1 has male threads, the book is pictured wrong.

1шт.

20

1962618C1

ROD

END ASSEMBLY - left (Includes Ref. 22 - 26)

1шт.

21

1962619C1

ROD

END ASSEMBLY - right, Includes: Ref. 22 - 26

1шт.

22

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

2шт.

23

1275164C1

RING

- retaining

2шт.

24

1275165C1

COVER ASSY

COVER - dust

2шт.

25

1275160C1

NUT

- hex slotted, M12 x 1.25 (Replaces 1269784C1)

2шт.

26

732-3225

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (replaces 632-630)

2шт.

27

1962622C1

NUT

- hex, M18, left hand thread

1шт.

28

1962621C1

NUT

- hex, M18

1шт.

33

99227C1

KNUCKLE JOINT

ARM - steering, left

1шт.
