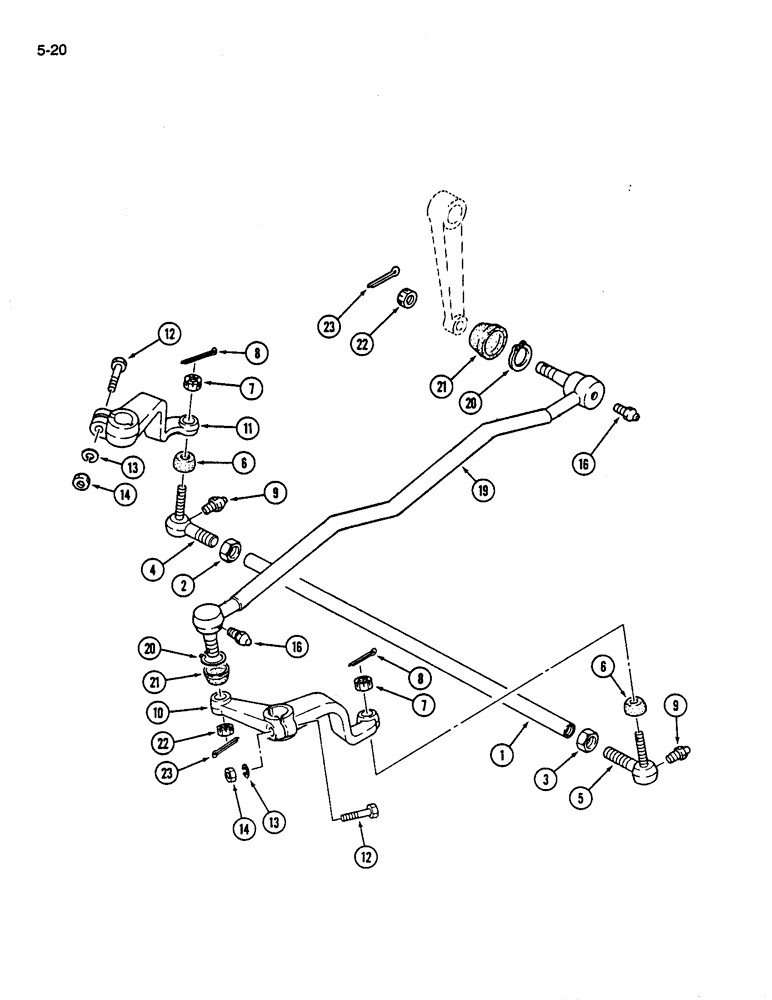

Запчасти Case IH 245 (5-20) - TIE ROD AND STEERING LINKAGE, NONADJUSTABLE AXLE (05) - STEERING

1

1273543C1

TURNBUCKLE

ROD - tie

1шт.

2

1273544C1

NUT

- hex, special, M17

1шт.

3

1273545C1

NUT

- hex, special, M17, left hand thread

1шт.

4

1273546C91

END ASSY.

ROD END ASSEMBLY - tie, right (Includes Ref. 6 - 9)

1шт.

5

1273547C91

END ASSY.

ROD END ASSEMBLY - tie, left, Includes: Ref. 6 - 9

1шт.

6

1273548C1

COVER ASSY

COVER - dust

2шт.

7

1273549C1

NUT

- castle, M12

2шт.

8

732-3225

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (replaces 632-630)

2шт.

9

1273649C1

FITTING

- grease, M6

2шт.

10

99227C1

KNUCKLE JOINT

ARM - steering, left

1шт.

11

1273551C1

ARM

- steering, right (Replaces 1275143C1)

1шт.

12

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex, M10 x 60 mm, Grade 10.9

2шт.

13

892-11010

LOCK WASHER,M10

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight

2шт.

19

99389C2

DRAG LINK

LINK ASSEMBLY - drag (Includes Ref 16), Includes: Ref. 20 - 23

1шт.

20

1275164C1

RING

- retaining (Replaces 1273528C1)

2шт.

21

1275165C1

COVER ASSY

COVER - dust (Replaces 1273527C1)

2шт.

22

1275160C1

NUT

- hex slotted, M12 (Replaces 1271875C1)

2шт.

23

732-3225

COTTER PIN,M3.2 x 25

PIN - cotter, 3 x 25 mm (replaces 632-630)

2шт.
