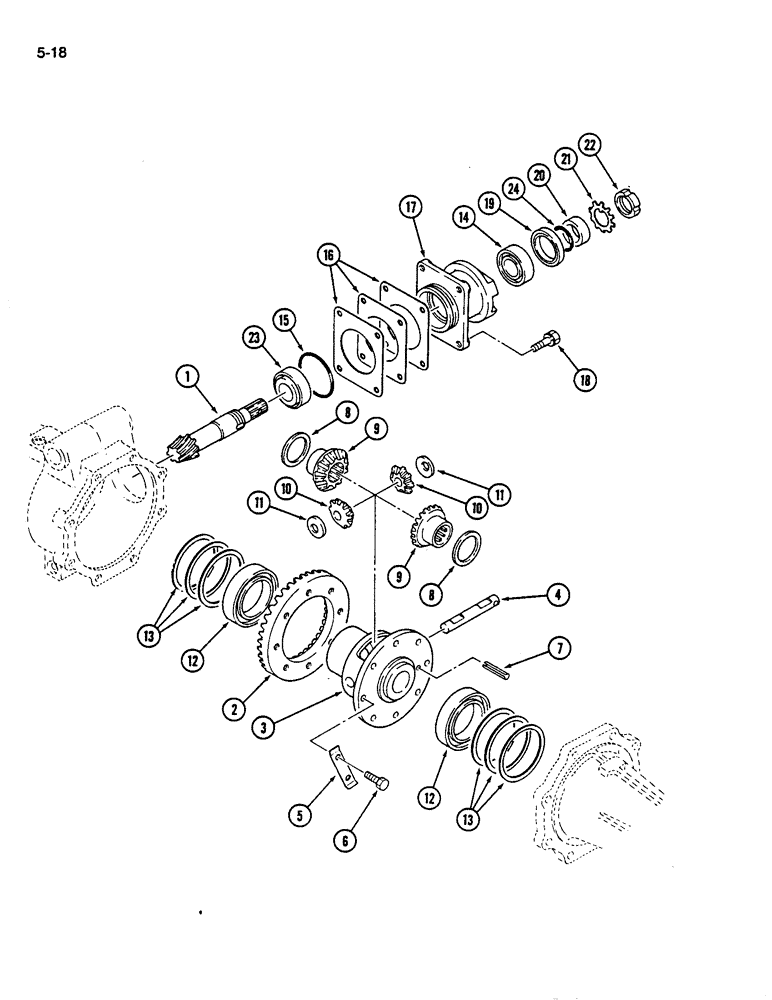

Запчасти Case IH 245 (5-18) - FRONT AXLE DIFFERENTIAL, MFD TRACTOR (05) - STEERING

1962772C1

GEAR WHEEL

GEAR SET - differential, Includes: Ref. 1 and 2

1шт.

1

1273196C1

GEAR

SHAFT - pinion

1шт.

2

1273195C1

GEAR

- ring

1шт.

3

1273174C1

CASE

HOUSING - differential

1шт.

4

1269465C1

SHAFT HOUSING

SHAFT - pinion gear

1шт.

5

1273457C1

SUPPORT ASSY.

PLATE - lock

4шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

8шт.

7

31122R1

LOCK PIN,M6 x 40, Slotted

PIN - slotted spring, 6 x 40 mm

1шт.

8

1269467C1

THRUST WASHER

- thrust (Replaces 1273199C1)

2шт.

9

1269479C1

GEAR WHEEL

GEAR - side, 16 tooth (Replaces 1273194C1)

2шт.

10

1269483C1

GEAR WHEEL

GEAR - pinion, 10 tooth (Replaces 1273193C1)

2шт.

11

1269466C1

THRUST WASHER

- thrust

2шт.

12

1271854C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

13

1273173C1

SHIM

KIT - differential

1шт.

14

1273175C91

TAPERED BEARING

ASSEMBLY - roller, taper

2шт.

15

1269885C1

O-RING

O-RING - 60 mm ID

1шт.

16

1273172C1

SHIM

KIT - pinion shaft

1шт.

17

1273200C1

CASE

HOUSING - pinion shaft

1шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

19

1273183C1

OIL SEAL

SEAL - oil

1шт.

20

1287733C1

SPACER

- pinion shaft

1шт.

21

982894R1

LOCK WASHER

- bearing lock

1шт.

22

31099R1

LOCK NUT,M25 x 1.5, Bearing

NUT - bearing lock, M25

1шт.

23

1273201C91

TAPERED BEARING,25 mm ID x 52 mm OD x 19.25 mm

BEARING ASSEMBLY - roller, taper

1шт.

24

1282979C1

O-RING

O-RING - 36 mm ID

1шт.
