(5-16) - FRONT AXLE HOUSING, AXLE SHAFT AND GEARS, MFD TRACTOR

Запчасти Case IH 245 (5-16) - FRONT AXLE HOUSING, AXLE SHAFT AND GEARS, MFD TRACTOR (05) - STEERING

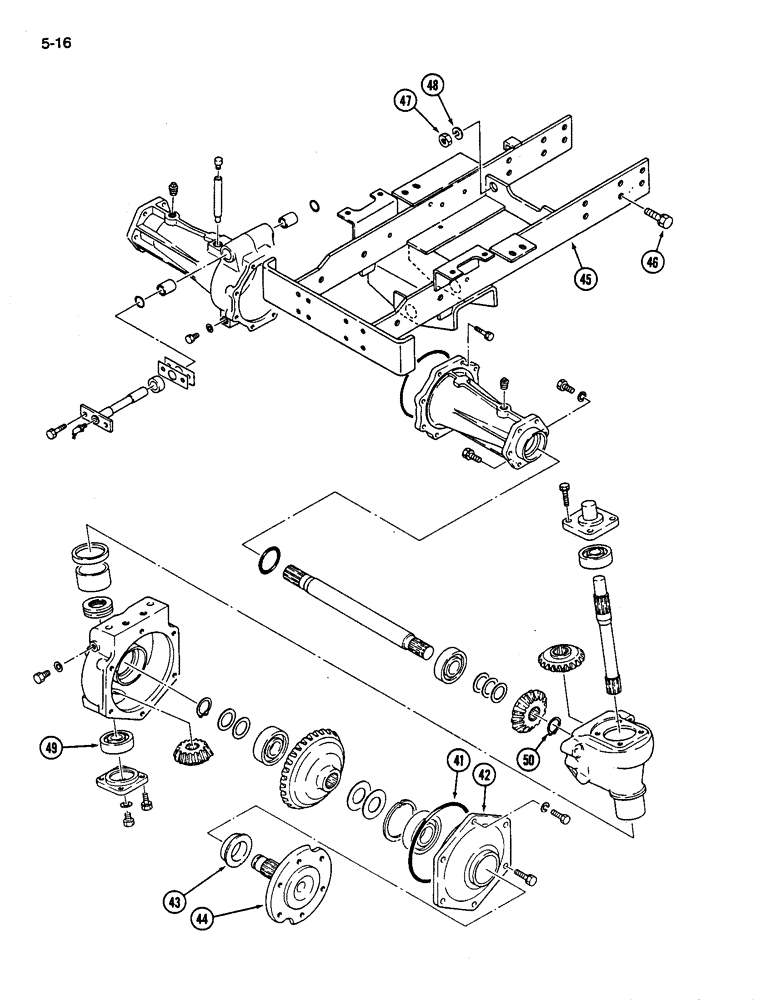

Схема запчастей Case IH 245 - (5-16) - FRONT AXLE HOUSING, AXLE SHAFT AND GEARS, MFD TRACTOR (05) - STEERING
46
47
49
50
44
48
42
45
41
43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

41

1269888C1

O-RING

O-RING - 145 mm ID

2шт.

42

1273205C1

COVER ASSY

COVER - housing

2шт.

43

1273188C1

OIL SEAL

SEAL - oil

2шт.

44

1273204C1

SHAFT HOUSING

SHAFT - wheel

2шт.

45

99228C1

FRAME

- front

1шт.

46

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm

12шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

47

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

2шт.

48

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

2шт.

49

1288022C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

50

933523R1

SNAP RING,M22, Ext

RING - retaining, external, 22 mm ID

2шт.

51

1991605C1

SHIM KIT

1шт.
