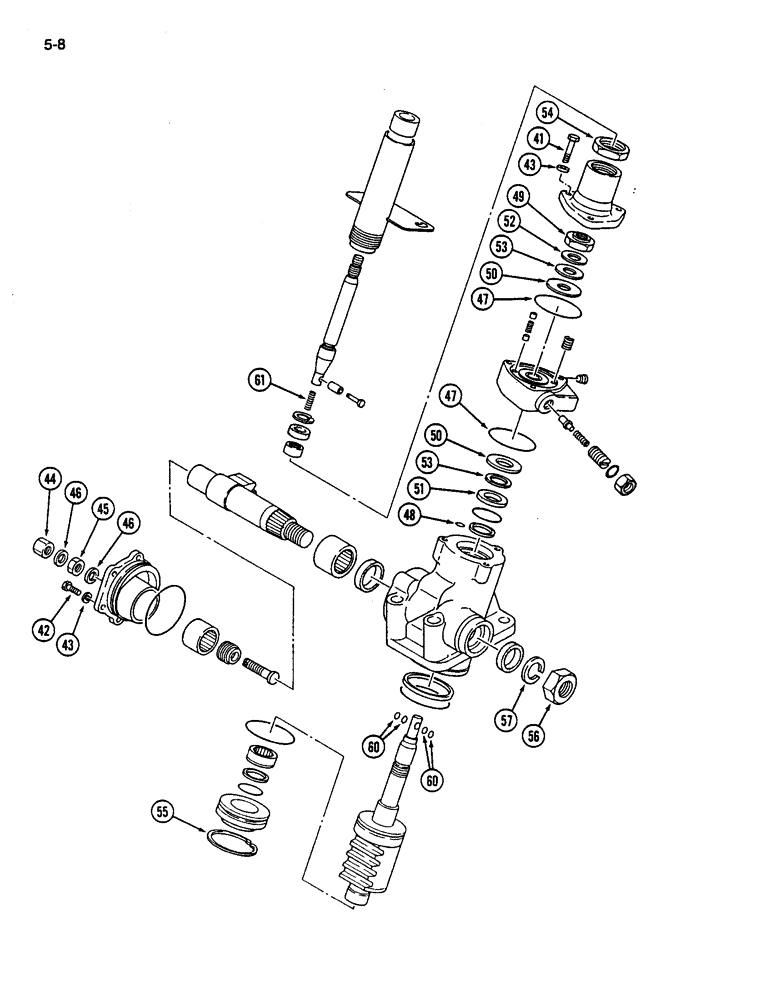

Запчасти Case IH 245 (5-08) - GEAR BOX ASSEMBLY, POWER STEERING (05) - STEERING

REF

INSTRUCTION

GEAR BOX ASSEMBLY - steering, Includes: Ref. 41 - 61 and Ref. 1 - 40 on Figure 5-6

1шт.

41

514-728

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

- hex, M10 x 1.25 65 mm

3шт.

42

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

- hex, M10 x 25 mm, Grade 10.9

4шт.

43

892-11010

LOCK WASHER,M10

7шт.

44

1275410C1

NUT

- hex special, M10 x 1.50

1шт.

45

1275411C1

NUT

- hex special, M10 x 1.50

1шт.

46

NSS

NOT SOLD SEPARAT

SEAL - packing

2шт.

Part of Seal Kit, P/N 1275450C2

1шт.

47

NSS

NOT SOLD SEPARAT

O-RING - housing

2шт.

Part of Seal Kit, P/N 1275450C2

1шт.

48

NSS

NOT SOLD SEPARAT

O-RING - housing

2шт.

Part of Seal Kit, P/N 1275450C2

1шт.

49

1275413C1

NUT

- hex, special, M22 x 1.5

1шт.

50

1275414C1

WASHER

- flat, 52 mm OD

2шт.

51

1275415C1

WASHER

- flat, 43 mm OD

1шт.

52

1275416C1

WASHER

- flat, 36 mm OD

1шт.

53

1275417C1

NEEDLE BEARING

BEARING - thrust

2шт.

54

1275418C1

NUT

- special, M42 x 2.0

1шт.

55

934444R1

SNAP RING,M63, Int

RING - retaining, internal

1шт.

56

525-5111

NUT,M22 x 1.5, Cl 8

- hex, M22 x 1.50

1шт.

57

892-12022

LOCK WASHER,M22

WASHER - lock, 22 mm

1шт.

60

NSS

NOT SOLD SEPARAT

O-RING - steering gear

4шт.

Part of Seal Kit, P/N 1275450C2

1шт.

61

1275423C1

VALVE SPRING

SPRING - steering shaft

1шт.

1275450C2

STRIPPER PACKAGE

KIT - seal, Includes: ref. nos. 46, 47, 48 and 60 on figure 5-7 and 5-9

1шт.
