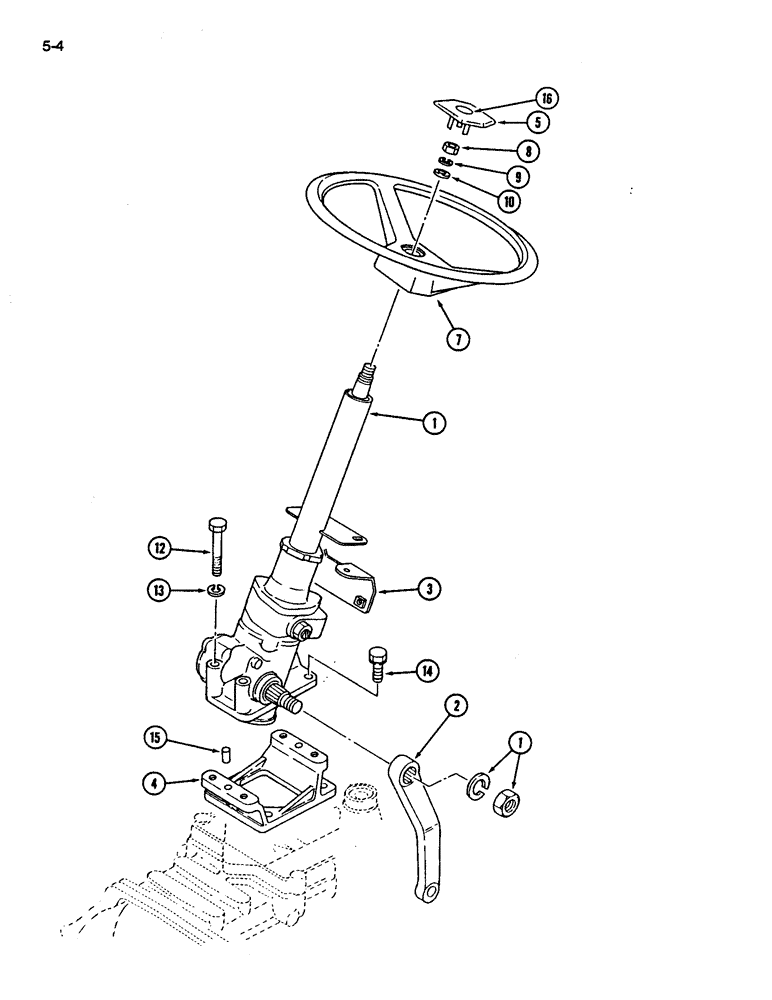

Запчасти Case IH 245 (5-04) - STEERING GEAR AND COLUMN, POWER STEERING (05) - STEERING

1

REF

INSTRUCTION

GEAR BOX ASSEMBLY - steering (See Figure 5-7)

1шт.

2

1273689C1

ARM

- pittman

1шт.

3

1273690C1

SUPPORT ASSY.

BRACKET - steering gear

1шт.

4

1273691C1

BRACKET

SUPPORT - steering gear

1шт.

5

99329C1

CYLINDER END CAP

CAP - steering wheel

1шт.

7

99328C1

WHEEL (STEERING)

WHEEL - steering

1шт.

8

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14 x 1.50 mm

1шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

10

30408R1

WASHER,M12 x 28.5 x 3, HT

- flat, 39/64 x 1-7/64 x 1/8 inch

1шт.

12

514-726

BOLT,Hex, M10 x 1.25 x 100mm, Cl 8.8

- hex, M10 x 100 mm

2шт.

13

892-11010

LOCK WASHER,M10

2шт.

14

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M10 x 30 mm

6шт.

892-11010

LOCK WASHER,M10

6шт.

15

30346R1

DOWEL,M10 x 20

PIN - dowel, hardened, 10 x 20 mm

2шт.

16

1961804C1

DECAL

INSERT - steering wheel eagle

1шт.
