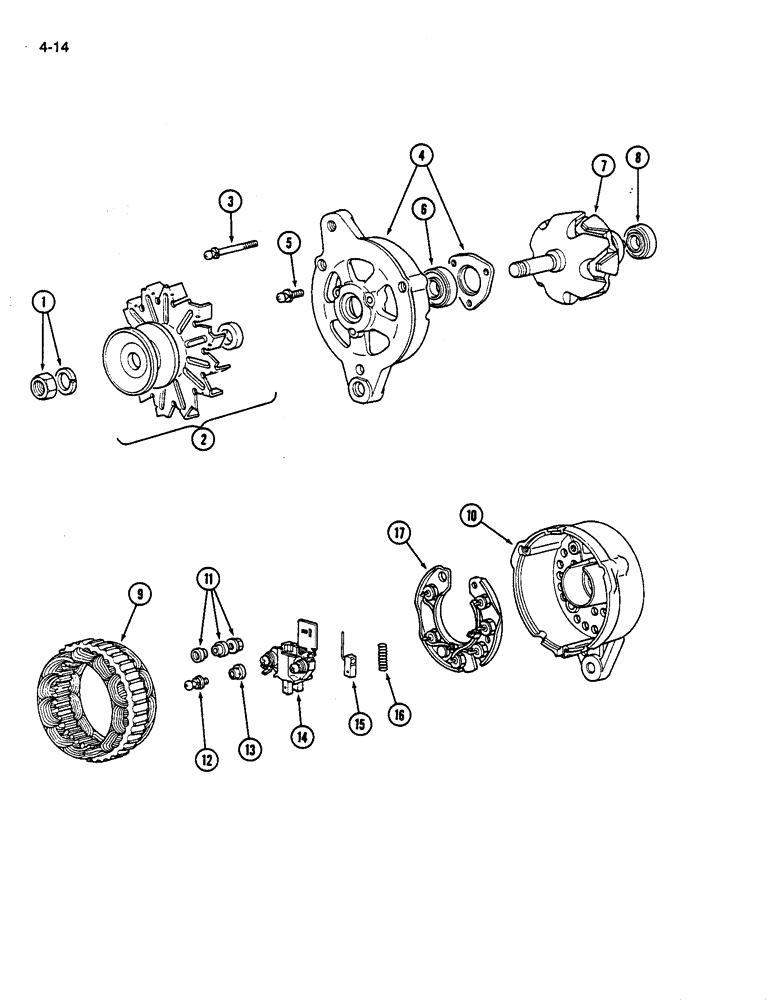

Запчасти Case IH 245 (4-14) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

1273116C91

GENERATOR

ALTERNATOR ASSEMBLY - 35 ampere, Includes: Ref. 1 - 17

1шт.

1

1962948C1

NUT

KIT - nut and washer

1шт.

2

1962949C1

PULLEY

KIT - pulley and fan

1шт.

3

1962950C1

CAPTIVE WASHER SCREW

KIT - hardware

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - front (Order 1273116C91), Includes: Ref. 5 and 6

1шт.

5

1962951C1

CAPTIVE WASHER SCREW

KIT - alternator screw

1шт.

6

1962952C1

BALL BEARING

BEARING - rotor

1шт.

Part of Brush and Bearing Kit, P/N 1273125C91

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - alternator (Order 1273116C91), Includes: Ref. 8

1шт.

8

1962953C1

BALL BEARING

BEARING - rotor

1шт.

Part of Brush and Bearing Kit, P/N 1273125C91

1шт.

9

NSS

NOT SOLD SEPARAT

STATOR - alternator (Order 1273116C91)

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - rear (Order 1273116C91), Includes: Ref. 11 - 17

1шт.

11

1962954C1

NUT

KIT - nut

1шт.

12

30479R1

SCREW,Cross Pan Hd, M5 x 16

BOLT - pan head, M5 x 16 mm

1шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

13

1962955C1

MOLDING

INSULATOR - brush holder

1шт.

14

NSS

NOT SOLD SEPARAT

HOLDER ASSEMBLY - brush, Includes: Ref. 15 and 16

1шт.

15

1962956C1

BRUSH

- alternator

2шт.

Part of Brush and Bearing Kit, P/N 1273125C91

1шт.

16

1962957C1

VALVE SPRING

SPRING - brush

2шт.

Part of Brush and Bearing Kit, P/N 1273125C91

1шт.

17

1962958C1

RECTIFIER

ASSEMBLY - alternator

1шт.

1273125C91

KIT

BRUSH AND BEARING KIT - alternator, Includes: ref. nos. 6, 8, 15, 16

1шт.
