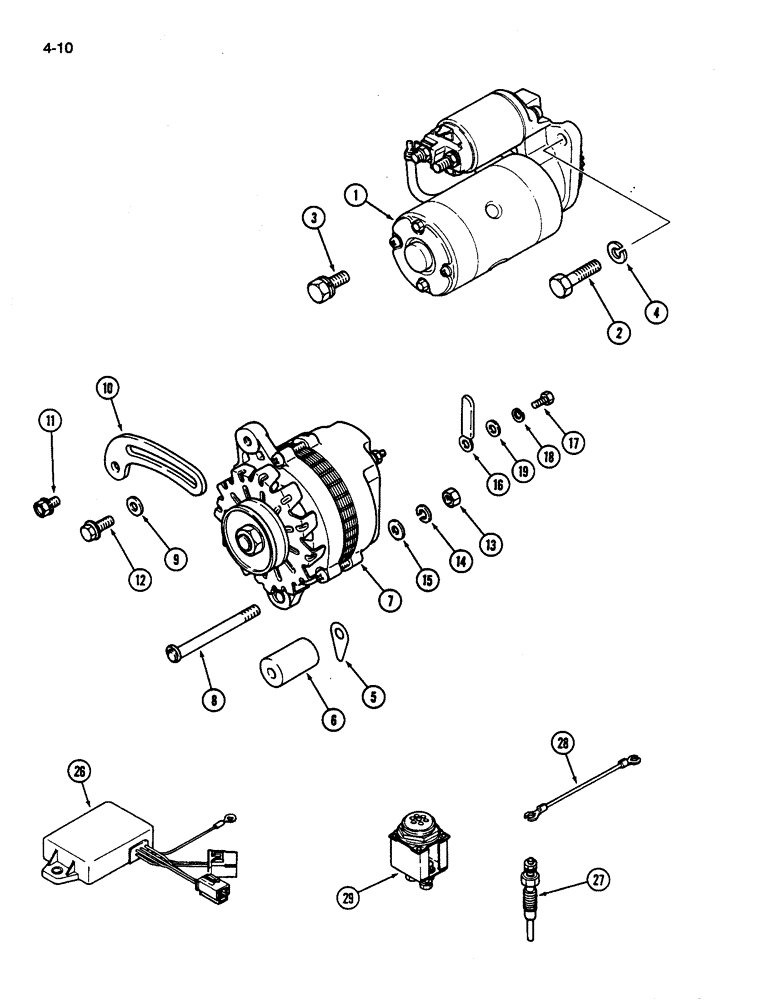

Запчасти Case IH 245 (4-10) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-13), Includes: Ref. 2 - 4

1шт.

2

1273113C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT - hex, M10 x 40 mm

1шт.

3

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

1273114C1

SHIM

- mounting adjust, alternator

1шт.

6

1273115C1

SPACER

- mounting, alternator

1шт.

7

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-15), mounting

1шт.

8

1273380C1

BOLT,M8 x 1.25 x 98mm

BOLT - hex, M8 x 98 mm, alternator mounting

1шт.

9

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- hardened, 11/32 x 43/54 x 5/64 inch, alternator mounting

1шт.

10

1273117C1

SUPPORT ASSY.

STRAP - alternator adjust, mounting

1шт.

11

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm, alternator mounting

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

12

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm, alternator mounting

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

13

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, alternator mounting

1шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm, Alternator mounting

1шт.

16

1963135C1

CLAMP

- fusible link, alternator mounting

3шт.

17

814-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

- hex, M5 x 0.8 x 12 mm, alternator mounting

1шт.

18

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Alternator mounting M5

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

Alternator mounting M5 x 10 x 1

1шт.

26

1273121C2

REGULATOR

- timer unit, glow plug

1шт.

27

1273118C1

GLOW PLUG

PLUG - glow

3шт.

28

1273119C1

CABLE PULLING GRIP

CABLE - glow plug

2шт.

29

1273120C1

LAMP

- indicator, glow plug

1шт.
