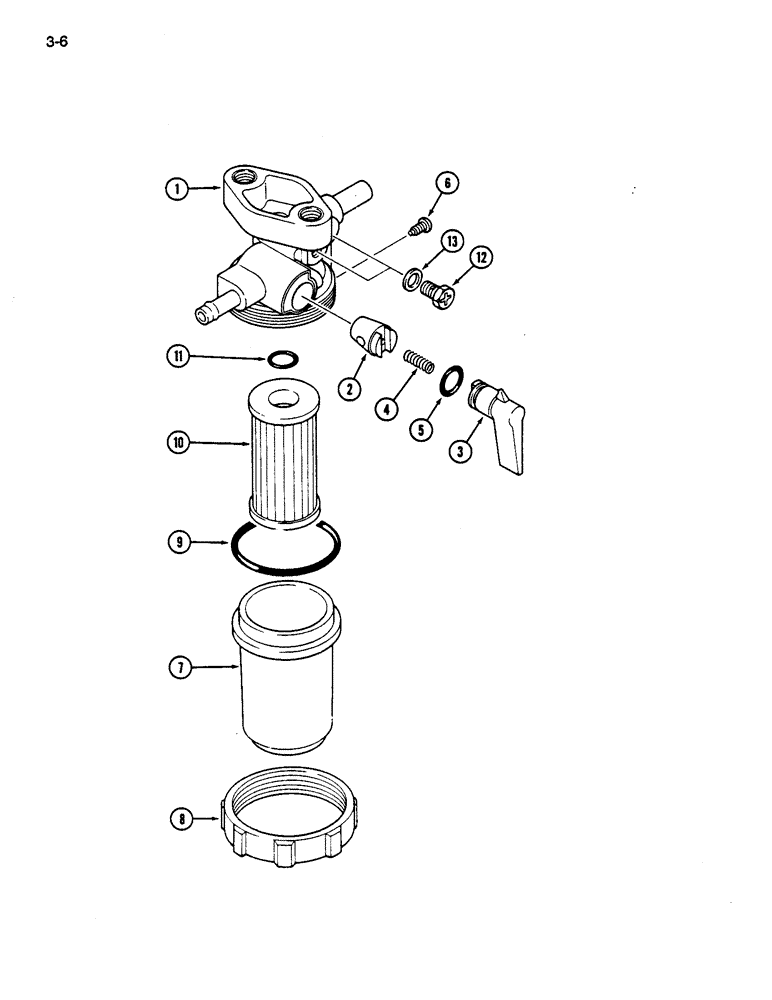

Запчасти Case IH 245 (3-06) - FUEL FILTER (03) - FUEL SYSTEM

1273027C91

FILTER CARTRIDGE

FILTER ASSEMBLY - fuel, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - filter (Order 1273027C91)

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - filter (Order 1273027C91)

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - valve (Order 1273027C91)

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - valve (Order 1273027C91)

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - valve (Order 1273027C91)

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - filter body (Order 1273027C91)

1шт.

7

NSS

NOT SOLD SEPARAT

CUP - filter (Order 1981528C1)

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - ring (Order 1273027C91)

1шт.

1273082C1

KIT

ELEMENT KIT - fuel filter, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - filter cup (Order 1273082C1)

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - fuel filter (Order 1273082C1)

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - element (Order 1273082C1)

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - air vent (Order 1273027C91)

2шт.

13

NSS

NOT SOLD SEPARAT

GASKET - air vent screw (Order 1273027C91)

2шт.
