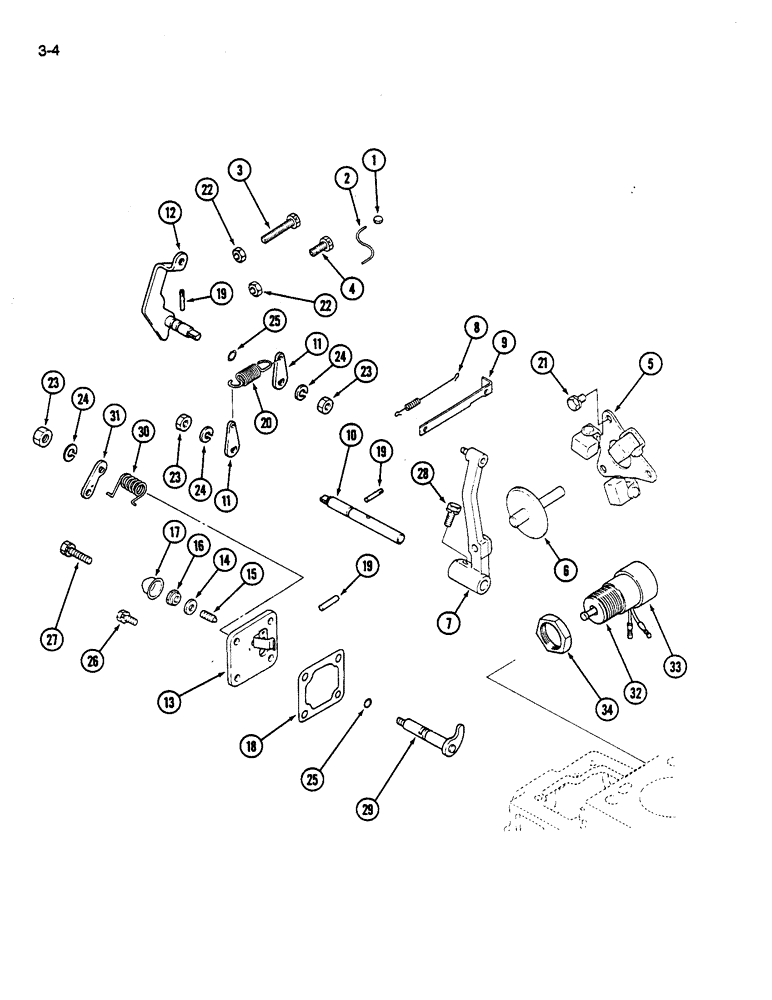

Запчасти Case IH 245 (3-04) - GOVERNOR CONTROLS (03) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

SEAL - lock wire

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

3

1271819C1

BOLT,Set, Drilled Hex Hd, M6 x 1 x 35mm

BOLT - high speed set

1шт.

4

1271830C1

BOLT,Set, Drilled Hex Hd, M6 x 1 x 20mm

BOLT - M6 x 20 mm, drilled head

1шт.

5

1273034C1

WEIGHT

ASSEMBLY - governor

1шт.

6

1273035C1

SHAFT HOUSING

SHAFT ASSEMBLY - sliding

1шт.

7

1273036C1

LEVER

ASSEMBLY - governor

1шт.

8

1273037C1

VALVE SPRING

SPRING - tie rod

1шт.

9

1273038C1

SUPPORT ASSY.

ROD - tie

1шт.

10

1273039C1

SHAFT HOUSING

SHAFT - governor

1шт.

11

1273040C1

ARM

- spring

2шт.

12

1273042C1

LEVER

ASSEMBLY - speed control

1шт.

13

1273043C92

COVER ASSY

COVER ASSEMBLY - tie rod, Includes: Ref. 14 - 17

1шт.

14

1273044C1

SEALING WASHER

SEAL - washer

1шт.

15

1273045C1

ADJUSTMENT SCREW,M6 x 17mm

SCREW - adjusting

1шт.

16

1273046C1

NUT

- special, M6 x 1.0

1шт.

17

1273047C1

CYLINDER END CAP

CAP - sealing

1шт.

18

1273048C1

GASKET

- cover

1шт.

19

1271831C1

AXLE PIN

PIN - grooved,3 x 24 mm

2шт.

19

1963634C1

AXLE PIN

PIN - grooved, 3 x 20 mm

1шт.

20

1273049C1

VALVE SPRING

SPRING - governor

1шт.

21

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

22

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

2шт.

23

30382R1

NUT,M8 x 1.25, Cl 10

Hex, Prevailing torque M8 x 1.25, Cl 10

3шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

25

1271836C1

O-RING,6.8mm ID x 1.9mm Width

O-RING - 7 mm ID

2шт.

26

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

27

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

28

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

- hex, M6 x 14 mm

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 8 x 12 x 2 mm

1шт.

29

1273050C1

LEVER

ASSEMBLY - stop

1шт.

30

1273051C1

VALVE SPRING

SPRING - return

1шт.

31

1273052C2

ARM

- stop

1шт.

32

1273053C1

RELAY

- solenoid

1шт.

33

1963633C1

CYLINDER END CAP

CAP - solenoid

1шт.

34

1273055C1

NUT

- hex, M30

1шт.
