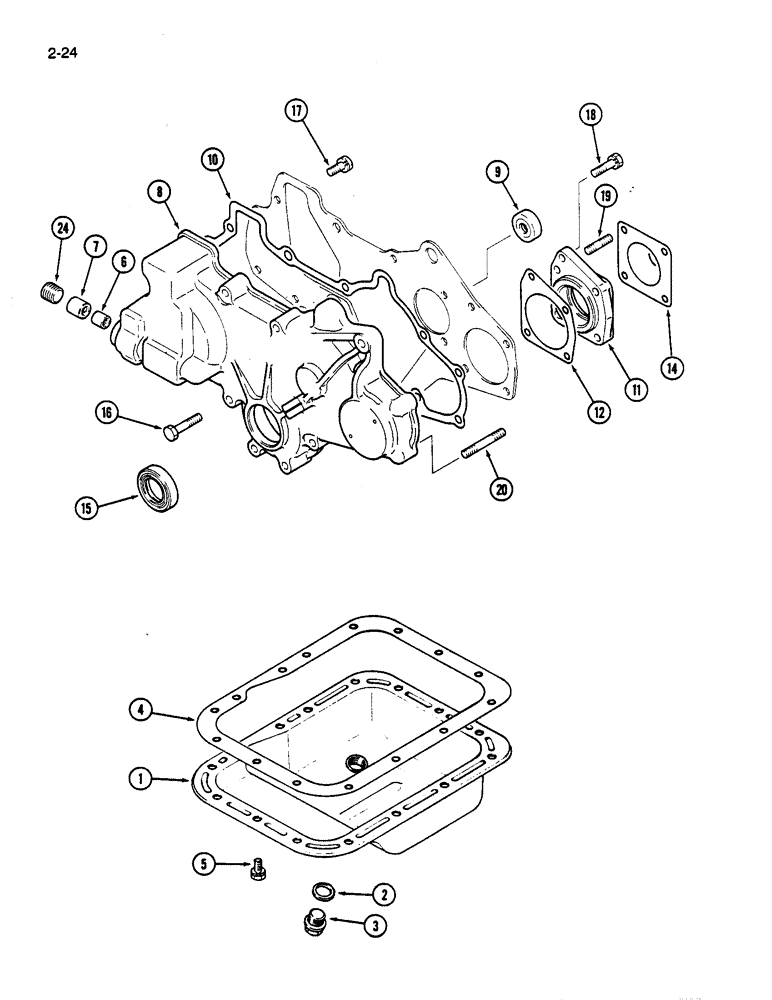

Запчасти Case IH 245 (2-24) - OIL PAN AND FRONT GEAR COVER (02) - ENGINE

1

1271904C91

PAN ASSY.

PAN ASSEMBLY - oil, engine, Includes: Ref. 2 and 3

1шт.

2

1271905C1

GASKET

- drain plug

1шт.

3

1271906C1

PLUG

- oil drain

1шт.

4

1271907C1

OIL PAN GASKET SET

- oil pan

1шт.

5

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

15шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

15шт.

6

1273346C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

7

1273347C91

NEEDLE BEARING

BEARING ASSEMBLY - needle

1шт.

8

1271908C91

CASE

COVER ASSEMBLY - gear, front, Includes: Ref. 9

1шт.

9

1273077C1

PLUG

- thrust

1шт.

10

1271909C1

GASKET

- gear cover

1шт.

11

1271910C1

HOUSING

- pump gear bearing

1шт.

12

1271911C1

GASKET

- housing

1шт.

14

1271913C1

GASKET

- oil pump

1шт.

15

1273348C1

OIL SEAL

SEAL - oil

1шт.

16

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

8шт.

17

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

18

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, M8 x 30 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

19

1273130C1

STUD

- threaded, M8 x 22 mm

1шт.

20

1273128C1

STUD

- threaded, M8 x 45 mm

3шт.

24

444705

PLUG,Hex Soc, 1/2"-14, Brass

- hex socket head, 1/2 - 14 PT

1шт.
