Запчасти Case IH 245 (2-22) - OIL PUMP AND FILTER (02) - ENGINE

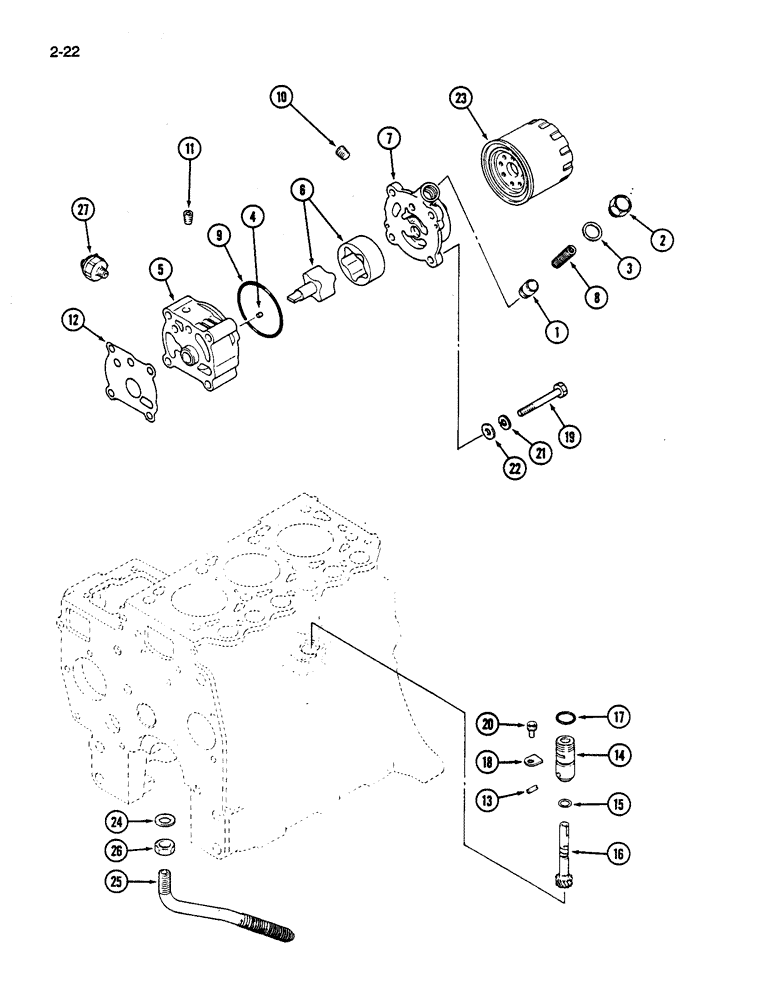

Схема запчастей Case IH 245 - (2-22) - OIL PUMP AND FILTER (02) - ENGINE
27
15
4
21
6
12
9
13
25
10
19
11
20
14
1
8
2
23
24
22
18
17
5
16
26
3
7

Артикул

Название

Примечание

Количество

1273056C91

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

Order 1273056C91 pump or 1273080C1 relief valve kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

Order 1273056C91 pump or 1273080C1 relief valve kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - relief valve

1шт.

Order 1273056C91 pump or 1273080C1 relief valve kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - dowel (Order 1273056C91)

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - oil pump (Order 1273056C91)

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - oil pump

1шт.

Order 1273056C91 pump or 1273081C91 rotor kit.

1шт.

Part of Oil Pump Rotor Kit, P/N 1273081C91

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - oil pump (Order 1273056C91)

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

Order 1273056C91 pump or 1273080C1 relief valve kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - oil pump

1шт.

Order 1273056C91 pump or 1273081C91 rotor kit.

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - pump cover, 1/4 PT (Order 1273056C91)

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - pump body (Order 1273056C91)

1шт.

12

1273064C1

GASKET

- oil pump

1шт.

Part of Oil Pump Relief Valve Kit, P/N 1273080C1

1шт.

1273065C91

DRIVE ASSY.

DRIVE ASSEMBLY - speedometer, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - spring (Order 1273065C91)

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - gear (Order 1273065C91)

1шт.

15

1271834C1

O-RING,10.3mm ID x 2.4mm Width

O-RING - 10 mm ID

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - driven, speedometer (Order 1273065C91)

1шт.

17

1271871C1

LINING

O-RING - 18 mm ID

1шт.

18

1273068C1

BAR

- speedometer drive, locking

1шт.

19

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

- hex, M8 x 65 mm

4шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

23

1275229C1

FILTER, ELEMENT

ELEMENT - filter, oil, engine

1шт.

Alternate w/ 104079A1

1шт.

24

1273070C1

SEALING WASHER

SEAL - washer

1шт.

25

1282963C1

TUBE,143, 110 mm Length

- oil screen, Includes: Ref. 26

1шт.

26

1269797C1

TUBE NUT

NUT - jam, M16

1шт.

27

1273073C2

SWITCH

- oil pressure

1шт.

1273080C1

KIT

RELIEF VALVE KIT - oil pump, Includes: ref. nos. 1, 2, 3, 8

1шт.

1273081C91

KIT

ROTOR KIT - oil pump, Includes: ref. nos. 6, 9, 12

1шт.

Выбрано товаров: 46
