Запчасти Case IH 245 (2-18) - CYLINDER BLOCK (02) - ENGINE

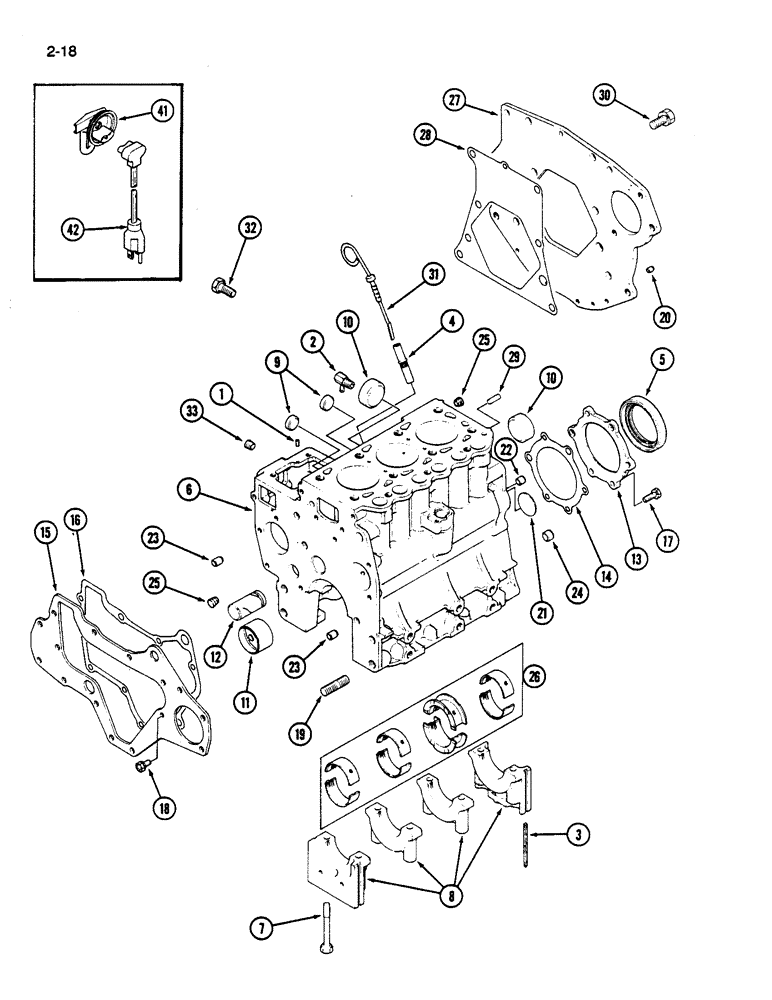

Схема запчастей Case IH 245 - (2-18) - CYLINDER BLOCK (02) - ENGINE
10
15
1
17
16
19
21
4
23
29
8
3
26
12
42
24
11
13
7
27
5
22
20
6
31
33
2
9
25
25
10
32
14
23
28
30
41
18

Артикул

Название

Примечание

Количество

80242C91

ENGINE ASSEMBLY

complete, 59.74 cu. in., 979 cc.

1шт.

1

30991R1

DOWEL,M4 x 10

PIN - dowel, 4 x 10 mm

2шт.

2

1271724C1

ELBOW UNION

ELBOW - water drain

1шт.

3

1271776C1

SEAL

SEAL - end bearing cap, side

4шт.

4

1271777C1

TUBE,9.6 mm ID, 12 mm OD, 50 mm Length

- dipstick

1шт.

5

1273127C1

OIL SEAL

SEAL - oil

1шт.

6

1287754C91

BLOCK

ASSEMBLY - cylinder, Includes: Ref. 7 - 11

1шт.

7

1271825C1

BOLT,Hex, M10 x 1.25 x 81mm

BOLT - bearing cap

8шт.

8

NSS

NOT SOLD SEPARAT

CAP - bearing (Order 1287754C91)

4шт.

9

30591R1

PLUG,M25, Tapered

- tapered cup, 25 mm

2шт.

10

30734R1

PLUG,M45, Tapered

- tapered cup, 45 mm

2шт.

11

1271780C1

SPACER

- camshaft

1шт.

12

1271781C1

SHAFT HOUSING

SHAFT - idler

1шт.

13

1271782C1

RETAINER

- oil seal

1шт.

14

1271783C1

GASKET

- oil seal

1шт.

15

1271784C1

PLATE ASSY.

PLATE - front

1шт.

16

1271785C1

GASKET

- front plate

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

19

1273132C1

STUD

- threaded, M14 x 30 mm

2шт.

20

1271835C1

AXLE PIN

PIN - dowel, 8 mm OD

1шт.

21

1288305C1

PLUG

- expansion 40 mm

1шт.

22

1271786C1

SPACER

- bushing, 8 mm OD x 9 mm long

2шт.

23

1271787C1

SPACER

- bushing, 8 mm OD x 13 mm long

2шт.

24

1271788C1

SPACER

- bushing, 12 mm OD x 9 mm long

2шт.

25

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket head, 1/4 - 18 PT

3шт.

26

1271789C1

CRANKSHAFT BEARING

LINER SET - main bearing, crankshaft, standard

1шт.

26

1271790C1

CRANK

LINER SET - main bearing, crankshaft, 0.25 mm undersize

1шт.

26

1271791C1

BEARING SET

LINER SET - main bearing, crankshaft, 0.50 mm undersize

1шт.

26

1271792C1

BEARING SET

LINER SET - main bearing, crankshaft, 0.75 mm undersize

1шт.

27

1271798C1

PLATE ASSY.

PLATE - rear

1шт.

28

12719O0C1

GASKET - rear plate

1шт.

29

1271827C1

AXLE PIN

PIN - dowel

1шт.

30

1273131C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT - hex, with washer, M12 x 28 mm

6шт.

31

1275232C1

GAUGE ASSY.

DIPSTICK - oil level

1шт.

32

1273144C1

BOLT,Hex, M12 x1.25 x 25mm

BOLT - hex, M12 x 25 mm

4шт.

33

444693

PLUG,Hex Soc, 1/4"-18, Brass

- block, 1/4 PT

1шт.

245565C1

STRIPPER PACKAGE

HEATER ASSEMBLY - cylinder block, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order 245565C1), block

1шт.

42

245564C1

ELECTRICAL WIRE

CORD ASSEMBLY - heater, block

1шт.

Выбрано товаров: 42
