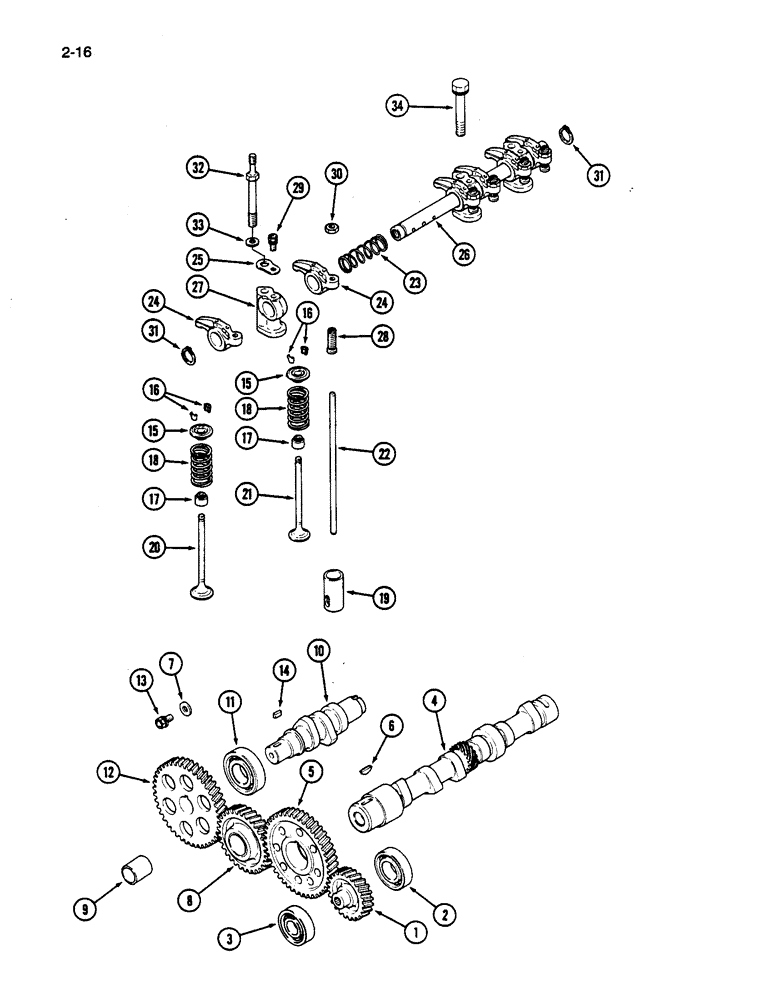

Запчасти Case IH 245 (2-16) - CAMSHAFT, VALVE MECHANISM AND GEARS (02) - ENGINE

1

1271971C1

GEAR WHEEL

GEAR - oil pump

1шт.

2

1273146C91

BEARING, BALL,25 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

1шт.

3

1273145C91

BALL BEARING,20 mm ID x 47 mm OD x 14 mm

BEARING ASSEMBLY - ball

1шт.

4

1271972C1

CAMSHAFT

- engine

1шт.

5

1271973C1

GEAR WHEEL

GEAR - camshaft

1шт.

6

1271974C1

KEY

- Woodruff, 5 x 19 mm

1шт.

7

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- hardened, 9 x 17 x 2 mm

1шт.

8

1271975C1

GEAR WHEEL

GEAR ASSEMBLY - idler, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - idler gear

1шт.

10

1271976C1

CAMSHAFT

- injection pump

1шт.

11

1273356C91

BEARING, BALL,28 mm ID x 58 mm OD x 16 mm

BEARING ASSEMBLY - ball

1шт.

12

1271977C1

GEAR WHEEL

GEAR - injection pump

1шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

14

1271978C1

BAR

KEY - injection pump gear, 5 x 12 mm

1шт.

15

1271979C1

RETAINER

- valve spring

6шт.

16

1271980C1

KEY

- valve spring retainer lock

12шт.

17

1271981C1

SEAL

SEAL - valve stem

6шт.

18

1271982C1

VALVE SPRING

SPRING - valve

6шт.

19

1271983C1

TAPPET

- push rod

6шт.

20

1271984C1

LOCK VALVE

VALVE - intake

3шт.

21

1271985C1

LOCK VALVE

VALVE - exhaust

3шт.

22

1271986C1

AXLE PIN

ROD - push

6шт.

23

1271987C1

VALVE SPRING

SPRING - rocker arm shaft

2шт.

24

1271988C1

ARM

- rocker

6шт.

25

1271989C1

WASHER

- seat

2шт.

26

1271990C1

SHAFT HOUSING

SHAFT ASSEMBLY - rocker

1шт.

27

1271991C1

BRACKET

- rocker arm shaft

3шт.

28

1271992C1

ADJUSTMENT SCREW,M10 x 1.25 x 34mm

SCREW - adjusting

6шт.

29

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

1269793C1

NUT

- lock, M10

6шт.

31

933081R1

SNAP RING,M19, Ext

RING - retaining, external, 17 mm ID

2шт.

32

1273141C1

STUD,M10 x 1.25 - M8 x 1.25 x 108mm L

- special

2шт.

33

892-11010

LOCK WASHER,M10

2шт.

34

1273143C1

BOLT,Hex, M10 x 1.25 x 70mm

BOLT - hex, with washer, 70 mm long

1шт.
