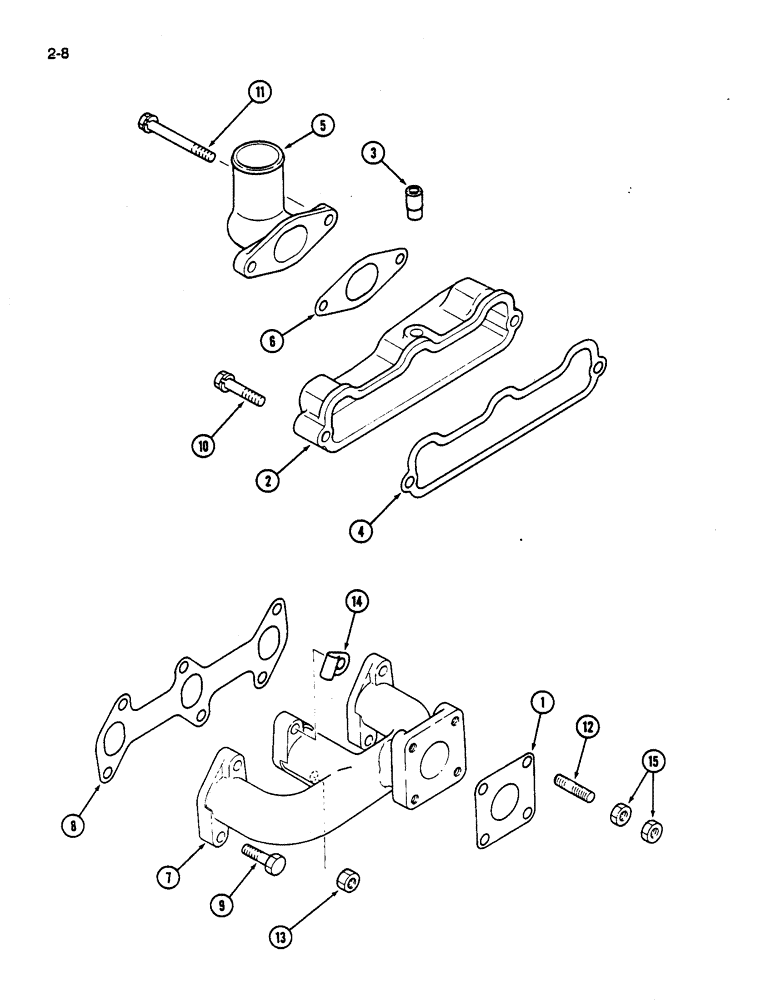

Запчасти Case IH 245 (2-08) - INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

1

1273104C1

GASKET

- exhaust, Serial Range: manifold-muffler

1шт.

2

1273106C91

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

FITTING - manifold

1шт.

4

1273107C1

MANIFOLD GASKET

- intake manifold

1шт.

5

1273108C1

ELBOW UNION

ELBOW - inlet

1шт.

6

1273109C1

GASKET

- inlet elbow

1шт.

7

1282571C1

MANIFOLD

- exhaust

1шт.

8

1273111C1

MANIFOLD GASKET

- exhaust manifold

1шт.

9

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

5шт.

10

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

11

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

1273129C1

STUD

- muffler mounting, M8 x 25 mm

4шт.

13

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

1шт.

14

3510O9R1

CLIP - tachometer cable

1шт.

15

1282956C2

NUT

- hex, M8

8шт.
