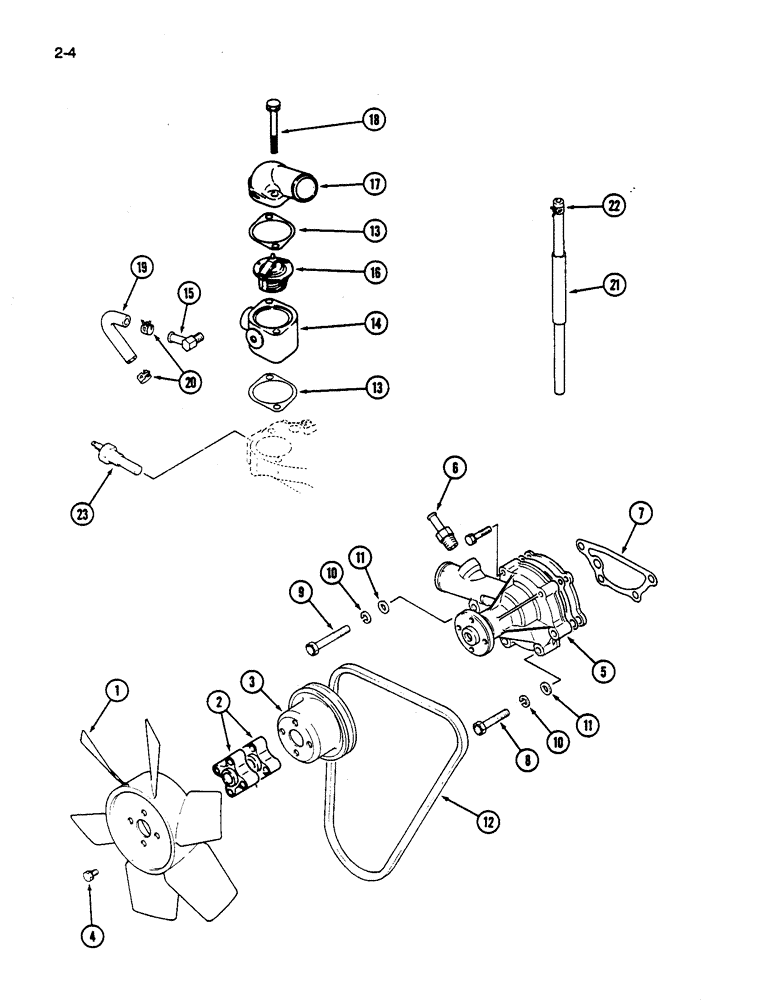

Запчасти Case IH 245 (2-04) - WATER PUMP (02) - ENGINE

1

1273097C2

FAN

- cooling

1шт.

2

1273103C1

SPACER

- fan

2шт.

3

1273084C1

PULLEY

- water pump

1шт.

4

30200R1

BOLT,Hex, M6 x 1 x 55mm, Cl 10.9

- hex, M6 x 55 mm, Grade 10.9

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

5

1273085C91

PUMP

ASSEMBLY - water, Includes: Ref. 6

1шт.

1273085C91R

REMAN-WATER PUMP

245

1шт.

1273085C91C

CORE-WATER PUMP

Return Number

1шт.

6

1273096C1

FITTING

- hose, nipple, straight, 3/8 PT

1шт.

7

1273086C1

GASKET

- water, Serial Range: pump-block

1шт.

8

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, M8 x 45 mm

3шт.

9

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

4шт.

12

676622R1

BELT,37.00" L

Fan 37.00" L

1шт.

13

1273088C1

GASKET

- thermostat housing

2шт.

14

1273098C1

HOUSING

- thermostat

1шт.

15

1273090C1

ELBOW UNION

FITTING - water outlet

1шт.

16

1273091C1

THERMOSTAT

- coolant, 180 degree F

1шт.

17

1273099C1

ELBOW UNION

HOUSING - thermostat

1шт.

18

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

19

NSS

NOT SOLD SEPARAT

HOSE - water bypass, 5-23/32 inch long (Order B90923 and, Serial Range: cut-length)

1шт.

20

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - water drain, 13 inch long (Order B90922 and, Serial Range: cut-length)

1шт.

22

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP - hose

1шт.

23

1273102C1

SWITCH

SENDER - engine coolant temperature

1шт.

B90923

HOSE,0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.

B90922

HOSE,0.25" ID x 50.00' Bulk, SAE 30R2 Type 1

0.25" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.
