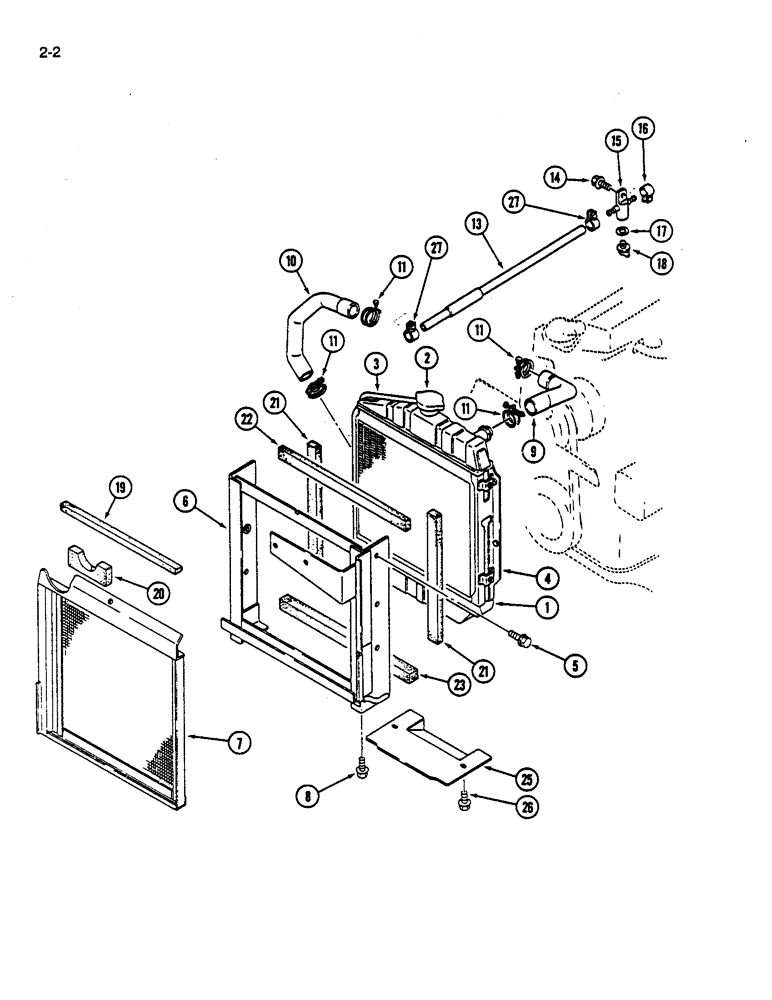

Запчасти Case IH 245 (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

1962486C1

RADIATOR

ASSEMBLY - engine (Replaces 99213C1)

1шт.

2

1269639C1

CAP

- radiator

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - overflow, 23-5/8 inch long (Order B90923 and, Serial Range: cut-length)

1шт.

4

1962487C1

SHROUD

- fan

1шт.

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 12 x 2 mm

4шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

99215C2

BRACKET

- radiator mounting

1шт.

7

99214C2

COVER ASSY

SCREEN - radiator

1шт.

8

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

1962545C1

RADIATOR HOSE,32.00 mm, 35.00 mm ID x 169.00 mm

Upper 32.00 mm, 35.00 mm ID x 169.00 mm

1шт.

10

1962546C1

RADIATOR HOSE,32.00 mm, 35.00 mm ID x 110.00 mm

Lower 32.00 mm, 35.00 mm ID x 110.00 mm

1шт.

11

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

13

NSS

NOT SOLD SEPARAT

HOSE - radiator drain, 12-19/32 inch (Order B90923 and, Serial Range: cut-length)

1шт.

14

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

1269622C1

TEE

- radiator drain

1шт.

16

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - hose

1шт.

17

1275077C1

GASKET

- drain cock

1шт.

18

1275078C1

LOCK VALVE

VALVE - drain cock

1шт.

19

NSS

NOT SOLD SEPARAT

CUSHION - radiator sealing, 12-13/16 inch long

1шт.

Order 99164C1 and cut to length

1шт.

20

99221C1

SEAL ASSY.

CUSHION - radiator sealing

1шт.

21

99216C2

CUSHION ASSY.

CUSHION - radiator, side, 12-51/64 inch long

2шт.

Order 99164C1 and cut to length

1шт.

22

99217C1

CUSHION - radiator, upper, 15-5/32 inch long

1шт.

Order 99164C1 and cut to length

1шт.

23

99218C1

SEAL ASSY.

CUSHION - radiator, lower

1шт.

25

99111C1

COVER ASSY

COVER - radiator bottom

1шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

27

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP - drain hose

2шт.

B90923

HOSE,0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

Heavy Duty 0.31" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.

99164C1

CUSHION ASSY.

CUSHION - radiator

1шт.
