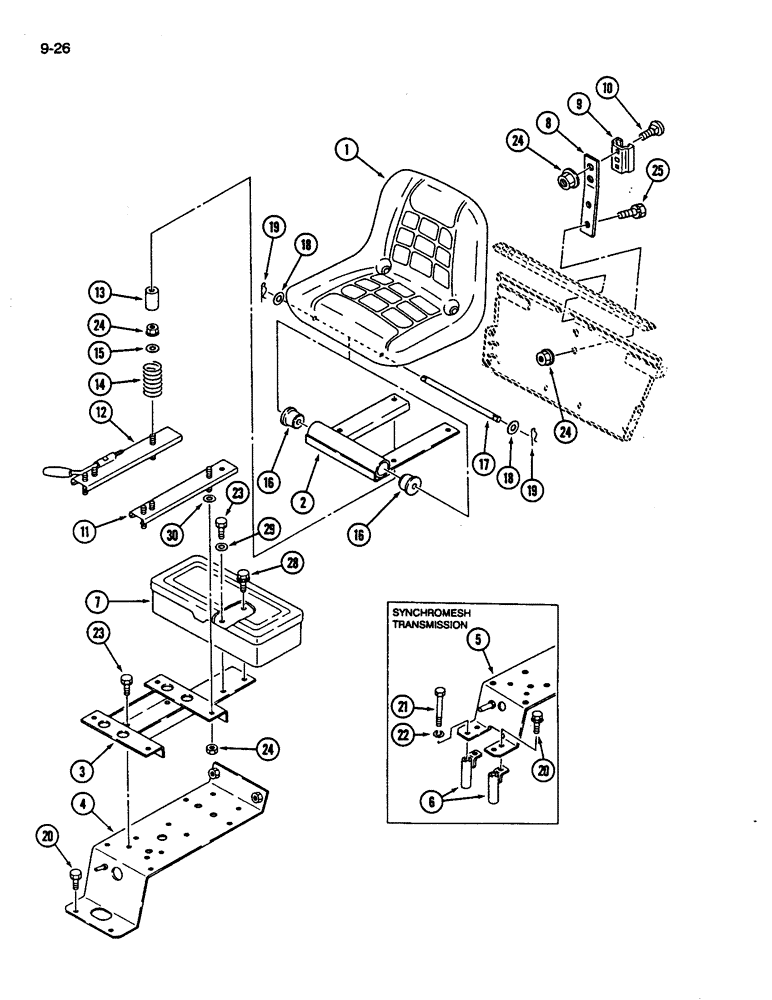

Запчасти Case IH 245 (9-26) - SEAT, TOOLBOX AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

99267C2

SEAT

ASSEMBLY - operator

1шт.

2

99268C2

BRACKET

- hinge

1шт.

3

99269C1

BRACKET

- seat

1шт.

4

99271C1

COVER ASSY

COVER - rear housing, (Constant Mesh transmission)

1шт.

5

99270C1

SUPPORT ASSY.

COVER - rear housing, (Synchromesh transmission)

1шт.

6

1282600C1

SPACER

- cover (Synchromesh transmission)

2шт.

7

1269728C1

BOX

- tool

1шт.

8

1273597C1

SUPPORT ASSY.

SUPPORT - SMV emblem

1шт.

9

398976R1

BRACKET

- SMV emblem

1шт.

10

30473R1

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8

BOLT - round head, square neck, M8 x 16 mm

2шт.

11

99188C1

RAIL

- slide

1шт.

12

1962768C1

ADJUSTER

- seat (Replaces 99187C1)

1шт.

13

99189C1

SEAT

STOPPER - rubber

2шт.

14

1962767C1

VALVE SPRING

SPRING - seat rail (Replaces 1962616C1)

2шт.

15

30183R1

WASHER,M8 x 21.5 x 2.5, HT

SPACER - seat rail (Replaces 1962617C1)

2шт.

16

99192C1

STOP

CUSHION - rubber

2шт.

17

1962587C1

SHAFT HOUSING

SHAFT - pivot

1шт.

18

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

19

1282706C1

AXLE PIN

PIN - hair

2шт.

20

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

21

514-725

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

- hex, M10 x 80 mm (Synchromesh transmission)

2шт.

22

892-11010

LOCK WASHER,M10

(Synchromesh transmission) M10

2шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

5шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

24

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

12шт.

25

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

1шт.

29

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- hardened, 9 x 17 x 2 mm

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.
