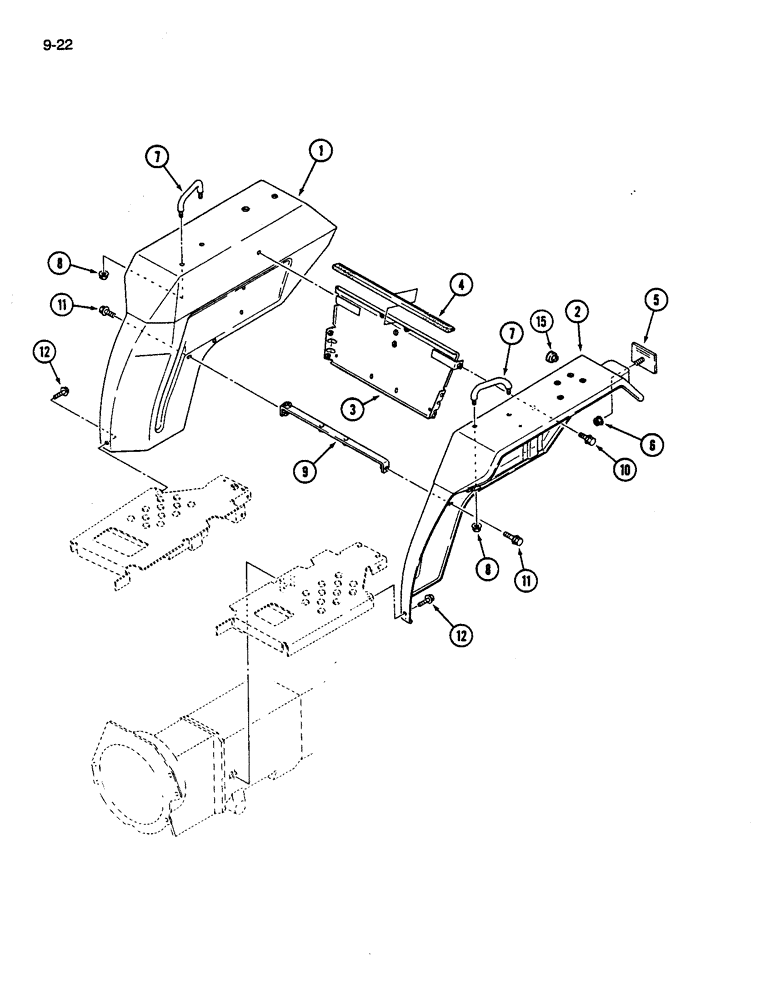

Запчасти Case IH 245 (9-22) - FENDERS (09) - CHASSIS/ATTACHMENTS

1

99384C1

FENDER

- rear, right

1шт.

2

99383C1

FENDER

- rear, left

1шт.

3

1273583C3

PLATE ASSY.

COVER - center

1шт.

4

1269681C1

SEAL

SEAL - cover

1шт.

5

1271744C1

REFLECTOR

- red

2шт.

6

825-1106

NUT,Hex, M6, Cl 8

- hex, M6

2шт.

7

1269683C1

HANDLE

- fender

2шт.

8

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

4шт.

9

1269684C1

SUPPORT ASSY.

BRACKET - fender

1шт.

10

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

6шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

12

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

15

1963549C1

GROMMET

- fender

1шт.
