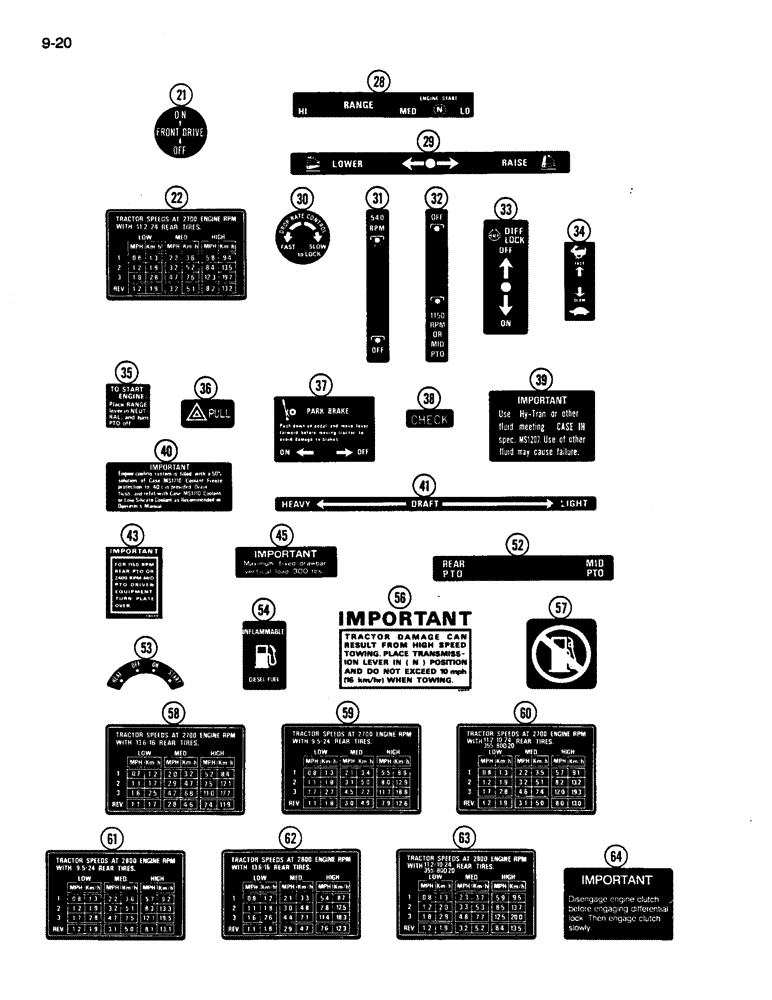

Запчасти Case IH 245 (9-20) - DECALS, INSTRUCTIONS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
21
99289C1
DECAL
- front drive (MFD)
1шт.
22
99311C1
DECAL
- speed (11.2-24 rear tire)
1шт.
28
99317C1
DECAL
- range shift, engine start
1шт.
29
99301C1
DECAL
- position, lift arms
1шт.
30
1962525C1
DECAL
- drop rate control, hydraulic
1шт.
31
99318C1
DECAL
- PTO engage (540 RPM)
1шт.
32
99319C1
DECAL
- PTO engage (1150 RPM or mid PTO)
1шт.
33
99297C1
DECAL
- differential lock
1шт.
34
99293C1
DECAL
- throttle
1шт.
35
1961803C1
DECAL
- starting
1шт.
36
99291C1
DECAL
- hazard lamp switch
1шт.
37
99296C1
DECAL
- park brake
1шт.
38
99292C1
DECAL
- check
1шт.
39
99290C1
DECAL
- fluid type
1шт.
40
99298C1
DECAL
- engine coolant
1шт.
41
99320C1
DECAL
- draft control
1шт.
43
99321C1
DECAL
- important, PTO
1шт.
45
99299C1
DECAL
- important, drawbar
1шт.
52
99322C1
DECAL
- select, mid and rear PTO
1шт.
53
99300C1
DECAL
- switch, key position
1шт.
54
99302C1
DECAL
- diesel fuel
1шт.
56
1962527C1
DECAL
- important, towing
1шт.
57
1962499C1
DECAL
- fuel shutoff
1шт.
1962526C1
DECAL
KIT - speed, Includes: Ref. 58 - 63
1шт.
58
NSS
NOT SOLD SEPARAT
DECAL - speed (13.6-16 rear tire) (2700 engine RPM)
1шт.
59
NSS
NOT SOLD SEPARAT
DECAL - speed (9.5-24 rear tire) (2700 engine RPM)
1шт.
60
NSS
NOT SOLD SEPARAT
DECAl - speed (11.2/10-24 or 355/80D20 rear tire) (2700 engine RPM)
1шт.
61
NSS
NOT SOLD SEPARAT
DECAL - speed (9.5-24 rear tire) (2800 engine RPM)
1шт.
Speed decals listing speeds at 2800 engine RPM are not used in this application.
1шт.
62
NSS
NOT SOLD SEPARAT
DECAL - speed (13.6-16 rear tire) (2800 engine RPM)
1шт.
Speed decals listing speeds at 2800 engine RPM are not used in this application.
1шт.
63
NSS
NOT SOLD SEPARAT
DECAL - speed (1 1.2/10-24 or 355/80D20 rear tire) (2800 engine RPM)
1шт.
Speed decals listing speeds at 2800 engine RPM are not used in this application.
1шт.
64
1962500C1
DECAL
- differential lock, Serial Range: -CCJ0009748
1шт.
Выбрано товаров: 34
