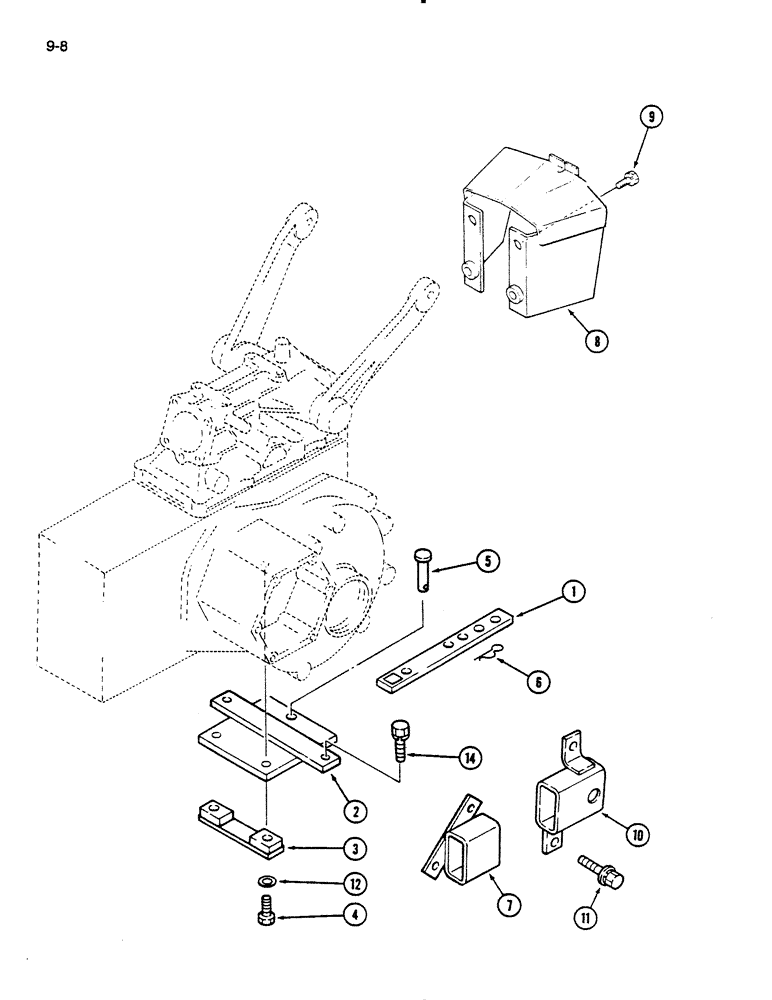

Запчасти Case IH 235 (9-08) - DRAWBAR AND PTO SHIELD, HYDROSTATIC TRANSMISSION (09) - CHASSIS/ATTACHMENTS

1

99132C1

DRAWBAR

- towing

1шт.

2

99128C1

BRACKET

- drawbar mounting

1шт.

3

99129C1

BRACKET

- drawbar mounting

1шт.

4

514-839

BOLT,Hex, M12 x 1.25 x 70mm, Cl 8.8

- hex, M12 x 70 mm

2шт.

5

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

1шт.

6

153528C1

COTTER PIN

- hair

1шт.

7

99130C1

BRACKET

- support

1шт.

8

1963151C1

COVER ASSY

SHIELD - PTO (Replaces 1269605C2)

1шт.

9

1269781C1

BOLT,Hex, M12 x 35mm

BOLT - hex, 35 mm long

4шт.

10

99131C2

BRACKET

- support

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

14

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
