(9-06) - DRAWBAR AND PTO SHIELD, MECHANICAL TRANSMISSION

Запчасти Case IH 235 (9-06) - DRAWBAR AND PTO SHIELD, MECHANICAL TRANSMISSION (09) - CHASSIS/ATTACHMENTS

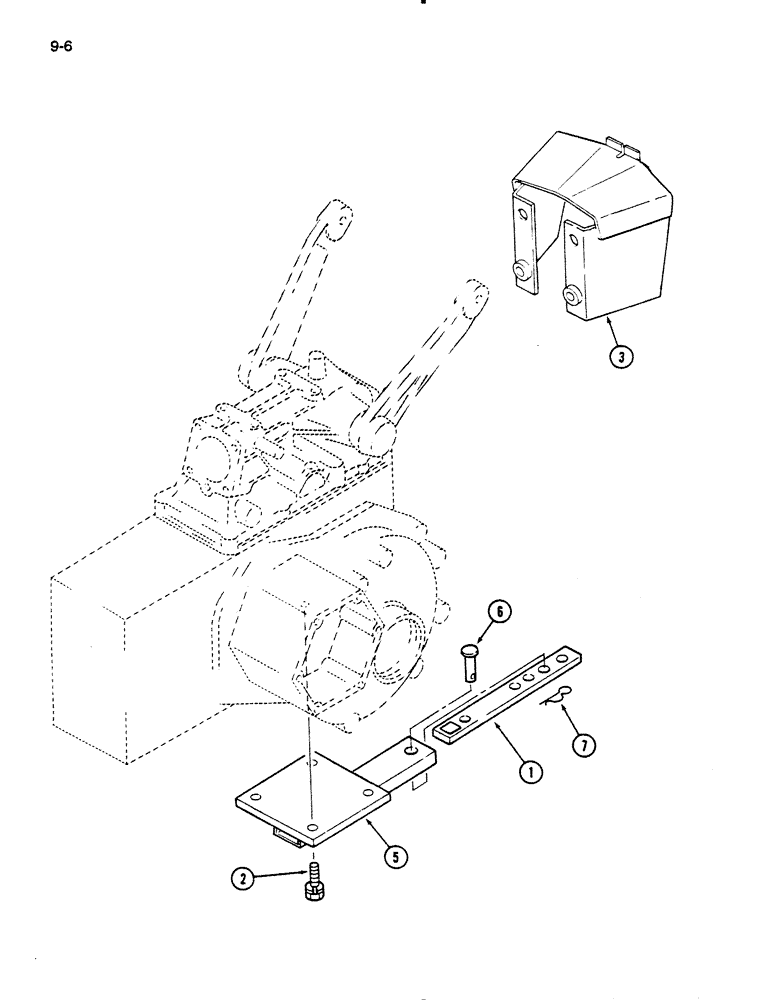

Схема запчастей Case IH 235 - (9-06) - DRAWBAR AND PTO SHIELD, MECHANICAL TRANSMISSION (09) - CHASSIS/ATTACHMENTS
3
5
2
1
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1275105C1

BAR

DRAWBAR - towing

1шт.

2

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm

2шт.

3

1963151C1

COVER ASSY

SHIELD - PTO (Replaces 1269605C2)

1шт.

5

1271700C1

BRACKET

- drawbar mounting

1шт.

6

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

1шт.

7

153528C1

COTTER PIN

- hair

1шт.
