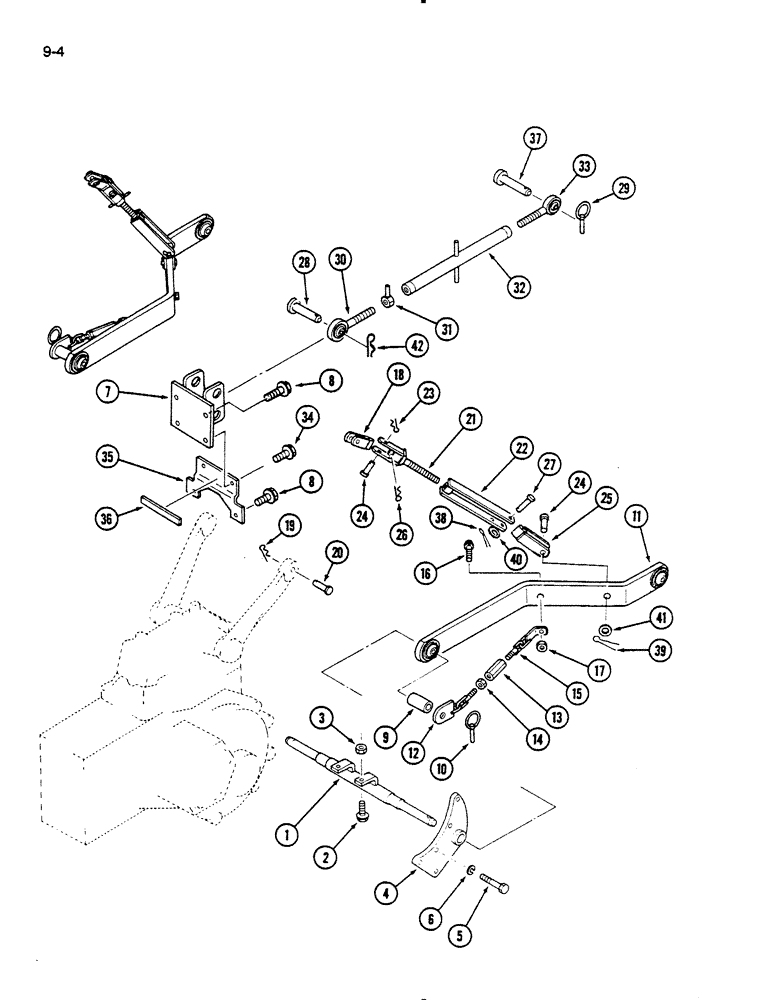

Запчасти Case IH 235 (9-04) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

1

1273263C1

ROD

- lower link attaching (Mechanical transmission)

1шт.

1

99124C1

ROD

- lower link attaching (Hydrostatic transmission)

1шт.

2

514-821

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, M12 x 1.25 x 40 mm (Mechanical transmission)

2шт.

2

1962470C1

BOLT (SPREADER)

BOLT - hex, with washer, 50 mm long (Hydrostatic transmission)

2шт.

3

1269797C1

TUBE NUT

NUT -jam, M16

2шт.

4

1269553C1

SUPPORT ASSY.

SUPPORT - lower link (Mechanical transmission) (Shown)

2шт.

4

99125C1

BRACKET

SUPPORT - lower link, left (Hydrostatic transmission)

1шт.

4

99126C1

BRACKET

SUPPORT - lower link, right (Hydrostatic transmission)

1шт.

5

1273265C1

BOLT,Hex, M10 x 1.25 x 85mm

BOLT - hex, 85 mm long

8шт.

6

892-11010

LOCK WASHER,M10

8шт.

7

1963140C1

BRACKET

- upper link mounting (Replaces 1273266C3)

1шт.

8

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, M12 x 30 mm

4шт.

9

1273267C1

SPACER

- lower link

2шт.

10

372907R91

LINCH PIN

PIN - hitch

5шт.

11

1273272C1

DRAG LINK

LINK - lower

2шт.

1962629C1

CHAIN (AG)

CHAIN ASSEMBLY - anti-sway, Includes: Ref. 12 - 15

2шт.

12

1273273C1

CHAIN (AG)

CHAIN - anti-sway

2шт.

13

1273274C2

TURNBUCKLE

- anti-sway adjusting

2шт.

14

30169R1

NUT,M12 x 1.75, Cl 10

- hex, M12, Grade 10

2шт.

15

1273275C1

CHAIN (AG)

CHAIN - anti-sway

2шт.

16

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

17

30169R1

NUT,M12 x 1.75, Cl 10

- hex, M12, Grade 10

2шт.

18

1273276C1

YOKE

- swivel, lift link, upper

2шт.

19

1269737C1

AXLE PIN

PIN - hair

2шт.

20

1273251C1

AXLE PIN

PIN - clevis

2шт.

21

1273277C1

ROD

YOKE - lift link, upper

2шт.

22

1273278C1

YOKE

- lift link

2шт.

23

1269736C1

AXLE PIN

PIN - hair

4шт.

24

1273250C1

AXLE PIN

PIN - clevis

4шт.

25

1273279C1

YOKE

- swivel, lift link, lower

2шт.

26

1269737C1

AXLE PIN

PIN - hair

2шт.

27

1273251C1

AXLE PIN

PIN - clevis

2шт.

28

1273155C1

AXLE PIN

PIN - clevis, upper link

4шт.

29

372907R91

LINCH PIN

PIN - klik

1шт.

1962628C1

LINK

ASSEMBLY - upper, Includes: Ref. 30 - 33

1шт.

30

1273149C1

ADJUSTER

ROD - upper link, right hand thread

1шт.

31

1273150C1

NUT

- lock

1шт.

32

1273151C1

TURNBUCKLE

- adjusting

1шт.

33

1273152C1

ADJUSTER

ROD - upper link, left hand thread

1шт.

34

1269782C1

BOLT,40mm Long

BOLT - hex, with washer, 40 mm long

2шт.

35

1275427C1

PLATE ASSY.

PLATE - mounting

1шт.

36

1273154C1

SHIM

- plate

1шт.

37

1273157C2

PIN

- clevis, upper link

1шт.

38

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

2шт.

39

30677R1

COTTER PIN,M3.2 x 32

PIN - cotter, 1/8 x 1-1/4 inch

2шт.

40

895-11014

WASHER,M14 x 28 x 2.5

- flat, 15 x 28 x 3 mm

2шт.

41

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

42

1273156C1

AXLE PIN

PIN - hair

1шт.
