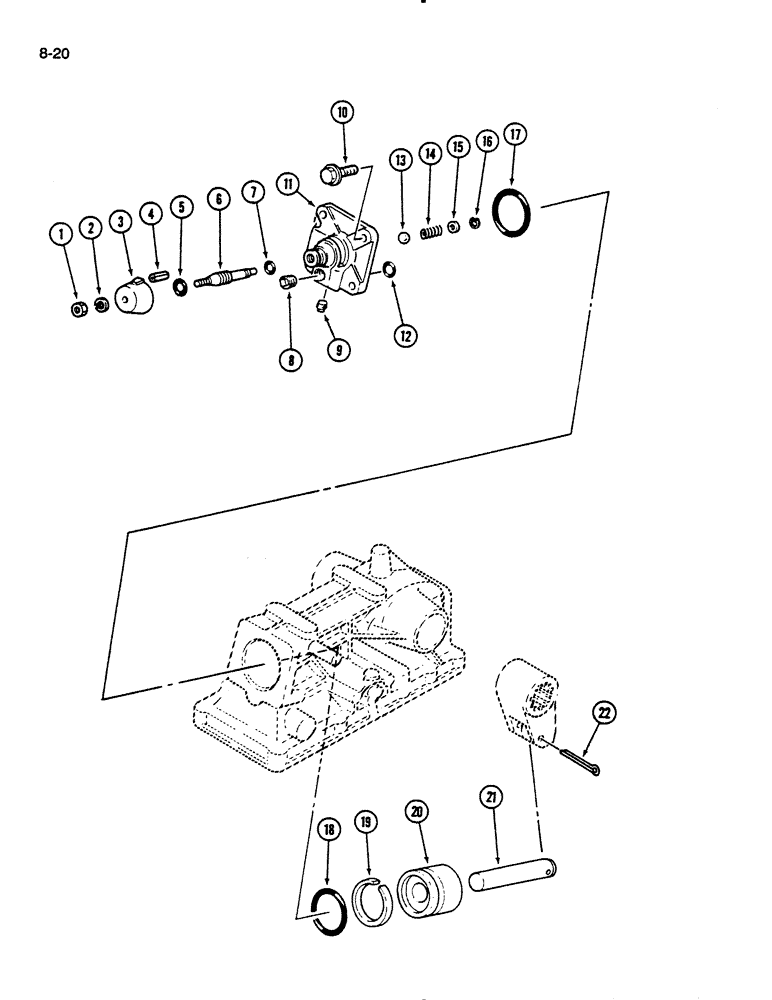

Запчасти Case IH 235 (8-20) - HITCH SYSTEM, PISTON (08) - HYDRAULICS

1

825-1108

NUT,Hex, M8, Cl 8

- hex, M8

1шт.

2

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

3

1275040C1

KNOB

- adjuster

1шт.

4

30757R1

PIN,M4 x 14, Coiled

- slotted spring,4 x 16 mm (Replaces 31115R1)

1шт.

5

1269872C1

O-RING

- 20 mm ID

1шт.

6

1275041C1

ADJUSTMENT SCREW,M8 x 1.25 x 14mm

SCREW - adjuster

1шт.

7

1273520C1

O-RING

O-RING - 7 mm ID

1шт.

8

103885

PLUG,Slotted, 3/8" NPT

- slotted, headless, 3/8 PT

1шт.

9

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

10

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

- hex, M12 x 1.25 x 45 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

11

1275042C1

END ASSY.

HEAD - cylinder

1шт.

12

1273522C1

O-RING

O-RING - 10 mm ID

1шт.

13

17014R1

BALL

- 7/16 inch diameter

1шт.

14

1275044C1

VALVE SPRING

SPRING - cylinder head

1шт.

15

1273211C1

WASHER

- 1/4 x 35/64 x 3/64 inch

1шт.

16

933687R1

SNAP RING,M15, Int

RING - retaining, internal, 16 mm OD

1шт.

17

1275045C1

O-RING

O-RING - 50 mm ID

1шт.

18

1269882C1

O-RING

O-RING - 50 mm ID

1шт.

19

1275046C1

RING

- back up

1шт.

20

1275047C1

PISTON ASSY.

PISTON - lift cylinder

1шт.

21

1275048C1

AXLE PIN

PIN - piston

1шт.

22

632-707

COTTER PIN,M5 x 50

PIN - cotter, 5 x 50 mm

1шт.
