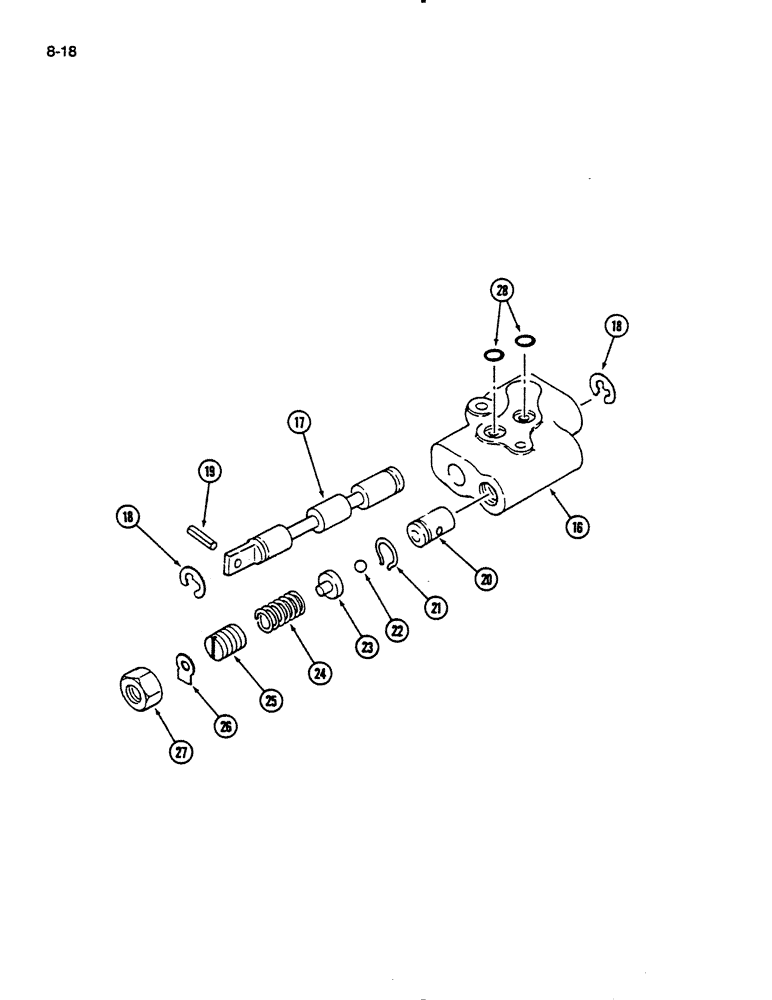

Запчасти Case IH 235 (8-18) - HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

1273337C91

LOCK VALVE

VALVE ASSEMBLY - control, hydraulic, Includes: Ref. 16 - 28

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1273337C91)

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order 1273337C91)

1шт.

18

1273592C1

CIRCLIP,M11

RING - retaining

2шт.

19

31121R1

LOCK PIN,M6 x 26, Slotted

PIN - slotted spring, 6 x 26 mm (Replaces 31121C1)

1шт.

20

1282739C1

STOP

SEAT - valve

1шт.

21

1282741C1

RING

- retaining

1шт.

22

17012R1

BALL,3/8" Dia

1шт.

23

1282742C1

STOP

SEAT - spring

1шт.

24

1282743C1

VALVE SPRING

SPRING - stop

1шт.

25

1282744C1

ADJUSTER

SCREW - adjuster

1шт.

26

1282745C1

PLATE ASSY.

PLATE - locking

1шт.

27

1282748C1

NUT

- lock, M12

1шт.

28

1282749C1

O-RING

O-RING - 12 mm ID

2шт.
