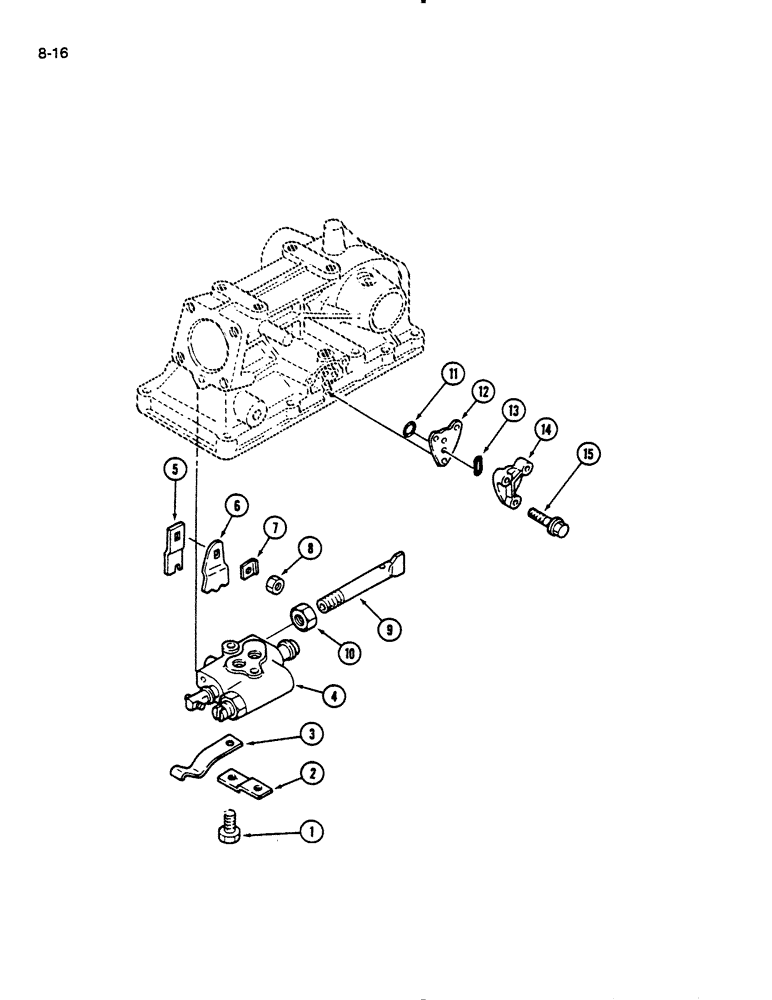

Запчасти Case IH 235 (8-16) - HYDRAULIC CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

2

1273335C1

SUPPORT ASSY.

BRACKET - valve mounting

1шт.

3

1273336C1

VALVE SPRING

BRACKET - valve mounting

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - control, hydraulics, See Figure 8-18

1шт.

5

1273338C1

SUPPORT ASSY.

ARM - control

1шт.

6

1273339C1

SUPPORT ASSY.

PLATE - linkage

1шт.

7

1273340C1

SUPPORT ASSY.

PLATE - lock

1шт.

8

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

1шт.

9

1273341C1

ROD

- valve

1шт.

10

525-5105

NUT,M14 x 1.5, Cl 8

- hex, M14

1шт.

11

1273523C1

O-RING

O-RING - 12 mm ID

5шт.

12

1273342C1

SUPPORT ASSY.

PLATE - support

1шт.

13

1962505C1

O-RING

- cap sealing, 25 mm ID (Replaces 1273343C1)

1шт.

14

1273344C1

CYLINDER END CAP

CAP - housing

1шт.

15

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.
