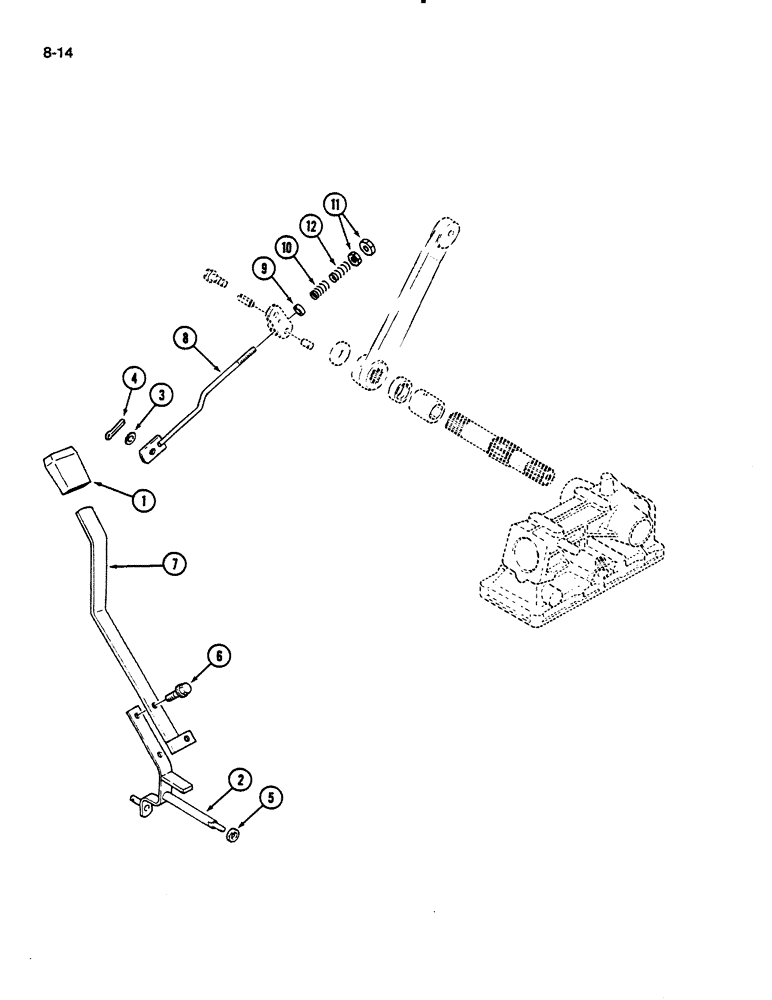

Запчасти Case IH 235 (8-14) - HYDRAULIC CONTROL LINKAGE (08) - HYDRAULICS

1

1273379C1

KNOB

- control lever

1шт.

2

1282570C1

LEVER

- control

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

4

732-2016

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm (Replaces 632-578)

1шт.

5

1273178C1

OIL SEAL

SEAL - oil

1шт.

6

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

7

99146C1

LEVER

- control

1шт.

8

1282540C1

ROD

- linkage

1шт.

9

1271813C1

WASHER

COLLAR - linkage rod

1шт.

10

1273645C1

VALVE SPRING

SPRING - linkage, 4 coils

1шт.

11

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

2шт.

12

1271733C1

VALVE SPRING

SPRING - linkage, 6 coils

1шт.
