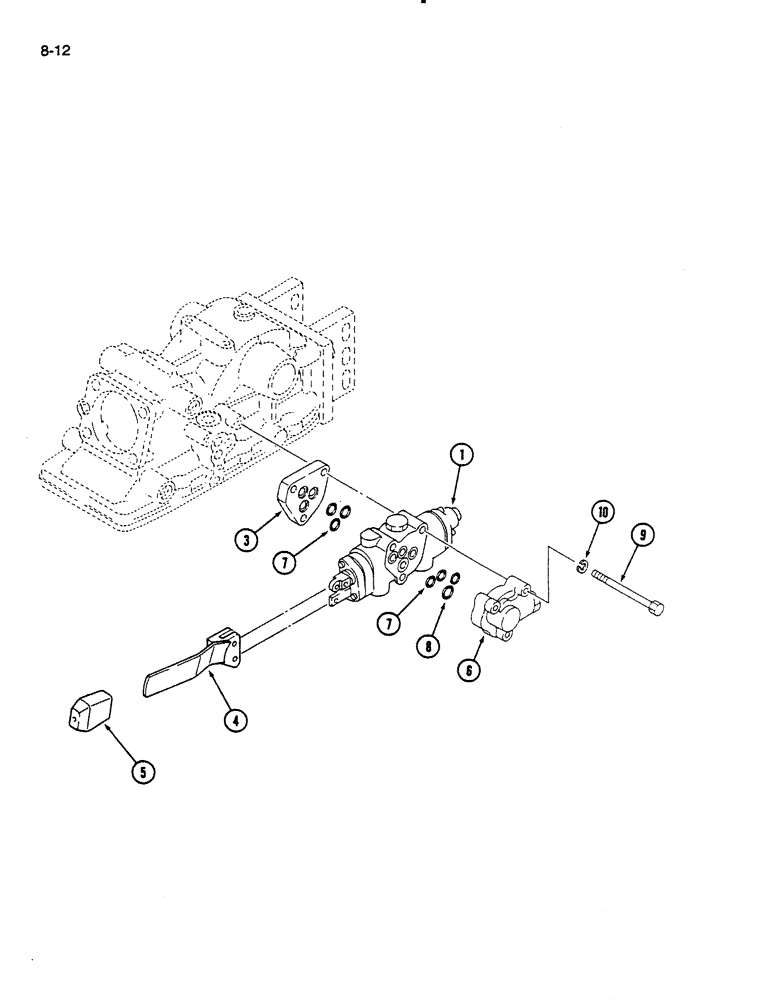

Запчасти Case IH 235 (8-12) - AUXILIARY VALVE KIT, DOUBLE ACTING (08) - HYDRAULICS

99088C1

LOCK VALVE

AUXILIARY VALVE KIT - double acting, Includes: Ref. 1 - 10

1шт.

1

1288097C1

VALVE ASSEMBLY - double acting auxiliary (Order 99088C1), Includes: pins and washers

1шт.

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

2шт.

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

30242R1

COTTER PIN,M1.2 x 10

PIN - cotter, 1 x 10 mm (Replaces 632-526)

2шт.

3

1963561C1

SPACER

- valve mounting (Replaces 1288098C1)

1шт.

4

1962542C1

LEVER

- auxiliary valve

1шт.

5

1273379C1

KNOB

- lever

1шт.

6

1962541C1

COVER ASSY

COVER ASSEMBLY - valve

1шт.

7

1282749C1

O-RING

O-RING - 12 mm ID

6шт.

8

1288101C1

O-RING

O-RING - 16 mm ID

1шт.

9

828-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

- hex, M8 x 110 mm, Grade 10.9

3шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.
