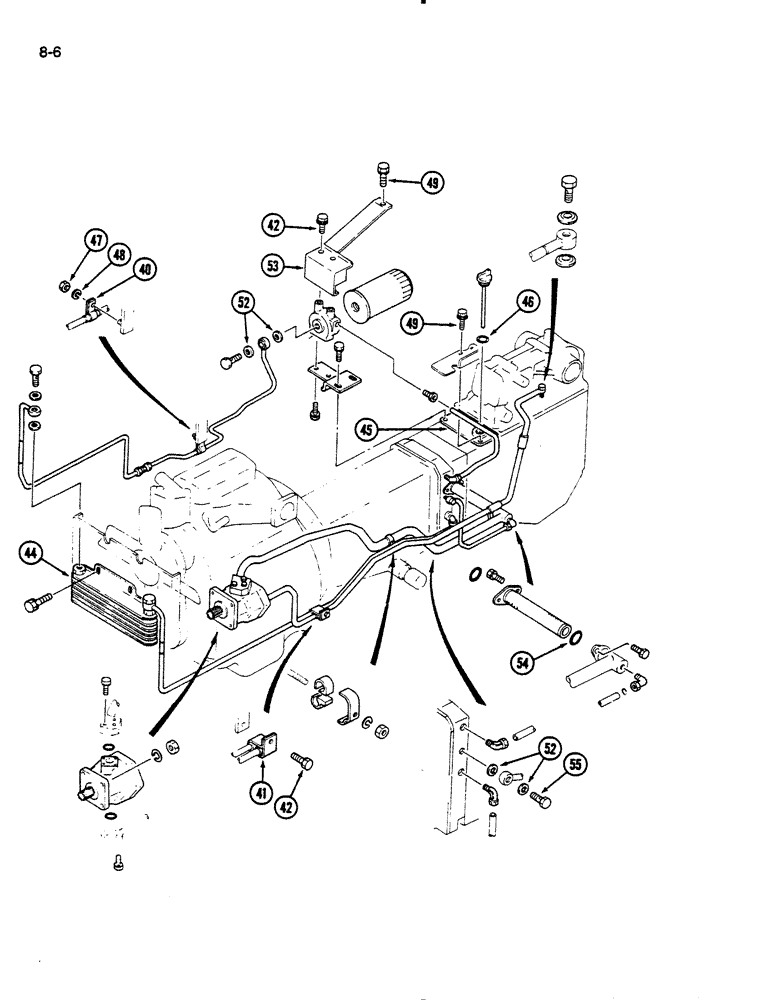

Запчасти Case IH 235 (8-06) - PUMP AND HYDRAULIC LINES, HYDROSTATIC TRANSMISSION (CONTD) (08) - HYDRAULICS

40

1273796C1

CLAMP

- tube

1шт.

41

1282529C1

CLAMP

- tube

1шт.

42

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, M8 x 20 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

44

1273788C1

COOLER ASSY.

COOLER ASSEMBLY - oil

1шт.

45

1273789C1

COVER ASSY

COVER - housing

1шт.

46

1269877C1

O-RING

- 28 mm ID

1шт.

47

525-5100

NUT,M10 x 1.25, Cl 8

- hex, M10

1шт.

48

892-11010

LOCK WASHER,M10

1шт.

49

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

3шт.

52

1282532C1

SEALING WASHER

- seal

4шт.

53

1282530C1

COVER ASSY

COVER - filter

1шт.

54

1282531C1

O-RING

O-RING - 16 mm ID

1шт.

55

1288266C1

BOLT,M16.62 x 43mm

BOLT - special

1шт.
