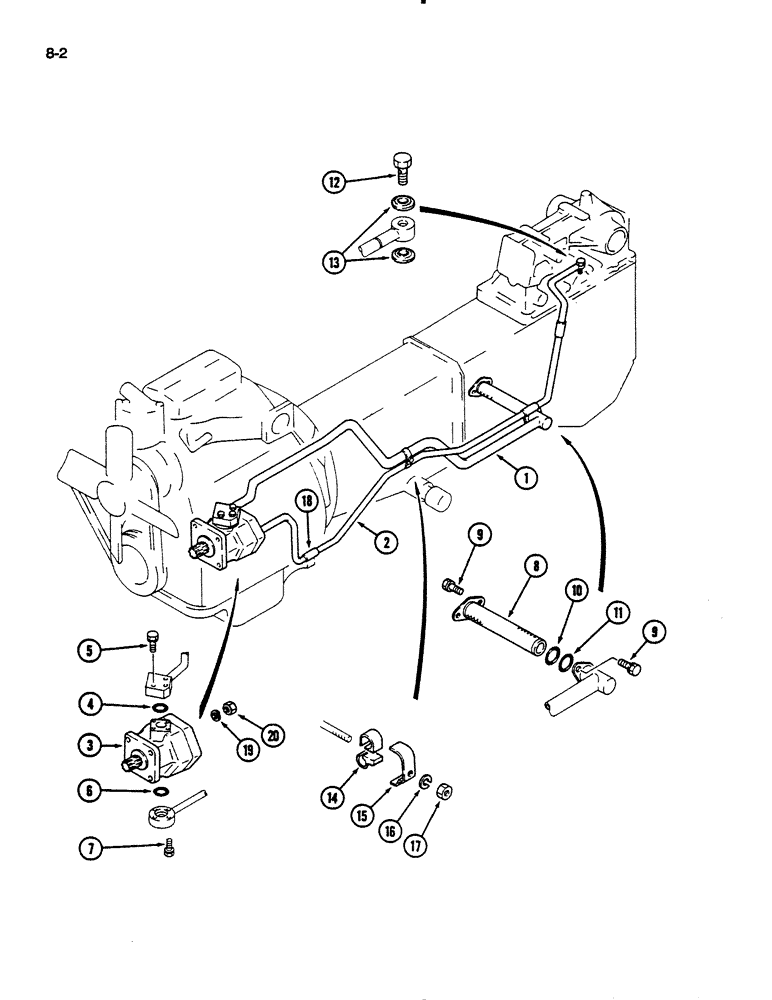

Запчасти Case IH 235 (8-02) - PUMP AND HYDRAULIC LINES, MECHANICAL TRANSMISSION (08) - HYDRAULICS

1

1273399C1

TUBE

- suction

1шт.

2

1273400C1

TUBE

- supply

1шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, See Figure 8-08

1шт.

4

1269872C1

O-RING

- 20 mm ID

1шт.

5

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

6

1269871C1

O-RING,17.8mm ID x 2.4mm Width

- 18 mm ID

1шт.

7

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

8

1273135C1

STRAINER ASSY.

STRAINER - suction

1шт.

9

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

1269893C1

O-RING

O-RING - 31 mm ID

1шт.

11

1269892C1

O-RING

O-RING - 30 mm ID

1шт.

12

1273402C1

BOLT,Hex, M14 x 42mm, Drilled

BOLT - special

1шт.

13

1273403C1

SEALING WASHER

SEAL - washer

2шт.

14

1273404C1

INSULATOR

CUSHION - rubber

1шт.

15

1273405C1

SUPPORT ASSY.

CLAMP - tube

1шт.

16

825-1106

NUT,Hex, M6, Cl 8

- hex, M6, Grade 10

1шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER - rubber, 1-9/16 inch long (Order B90924 and, Serial Range: cut-length)

3шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

825-1108

NUT,Hex, M8, Cl 8

- hex, M8, Grade 10

4шт.

B90924

HOSE,0.38" ID x 50.00' Bulk, SAE 30R2 Type 1

0.38" ID x 50.00' Bulk, SAE 30R2 Type 1

1шт.
